Ganter

Clamping lever, adjustable

GN 602.1-44-M4-32-RS Stainless steel, red textured matt
Item-no.: 1396257Supplier number: 602.1-44-M4-32-RSEAN: 4045525486836

Quantity: ​​ 1 PiecePackable
Item available in 748 variants:
Short-term Sourcing

Description
Adjustable hand levers GN 602.1 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. The gently arched handle with a reinforced end of the lever gives the operator a good grip. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
Attributes
Adjustable
True
Colour
RS - red, RAL 3000, textured matt

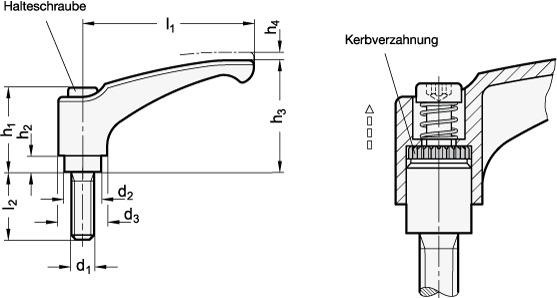

Connection thread d1
M 4
Handle body material
ZD - Zinc die casting
Handle length l1
44
RoHS
Ja
Thread length l2
32
Weight
0.038 kg
d2
10
d3
14.5
h1
24.5
h2
3.5
h3
30
h4 Rastweg
3.5
