Elesa

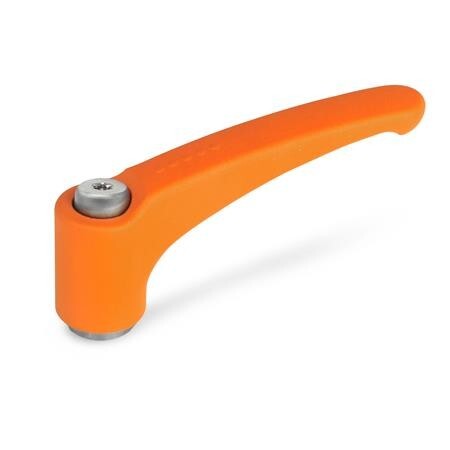

Adjustable clamping lever

GN 602.1-95-M12-OS Elesa 241037-C2
Item-no.: 1206595Supplier number: 602.1-95-M12-OScustoms tariff number: 84879090EAN: 4045525830431
Quantity: ​​ 1 PiecePackable​
Item available in 748 variants:
Short-term Sourcing
Description
Adjustable clamping levers GN 602.1 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. The gently arched handle with a reinforced end of the lever gives the operator a good grip. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
Attributes
Adjustable
True
Colour
OS - orange, RAL 2004, textured matt
Connection thread d1
M 12
Handle body material
ZD - Zinc die casting
Handle length l1
95
RoHS
Ja
Weight
0.193 kg
d3
19
d4
25
h1
43
h2
5
h3
56
h4 Rastweg
4
tmin.
17
