Adjustable clamping lever PA SG
GN 604.1-44-M6-SG Elesa 239106Item-no.: 1207214Supplier number: 604.1-44-M6-SGcustoms tariff number: 84879090EAN: 4045525303874
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description

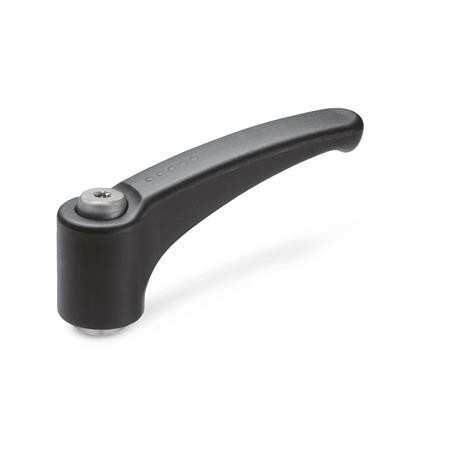

Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.

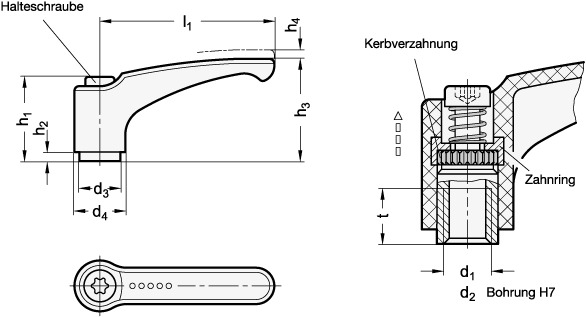

Attributes
Adjustable
True
Colour
SG - black-grey, RAL 7021, matt
Connection thread d1
M 6
Handle body material
PA - plastic, polyamide
Handle length l1
44
RoHS
Ja
Weight
0.015 kg
d3
10
d4
15.5
h1
24.5
h2
3.5
h3
30.5
h4 Rastweg
3.5
tmin.
8
