1134311 #1
Elesa

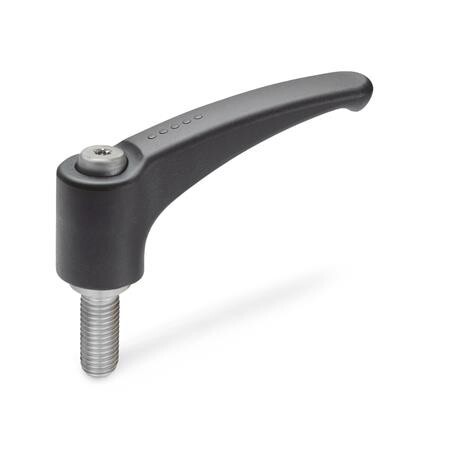

Adjustable clamping lever PA SG

GN 604.1-78-M10-25-SG Elesa 239655
Item-no.: 1134311Supplier number: 604.1-78-M10-25-SGEAN: 4045525304116
Quantity: ​​ 1 PiecePackable​
Item available in 168 variants:
Short-term Sourcing
Description
Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
Attributes
Adjustable
True
Colour
SG - black-grey, RAL 7021, matt
Connection thread d1
M 10
Handle body material
PA - plastic, polyamide
Handle length l1
78
RoHS
Ja
Thread length l2
25
Weight
0.076 kg
d2
16
d3
23
h1
36
h2
3.5
h3
46.5
h4 Rastweg
4
