Elesa

Adjustable clamping lever PA SG

GN 604.1-95-M12-20-SG Elesa 239849
Item-no.: 1207285Supplier number: 604.1-95-M12-20-SGEAN: 4045525304277
Quantity: ​​ 1 PiecePackable​
Item available in 62 variants:
Short-term Sourcing
Description

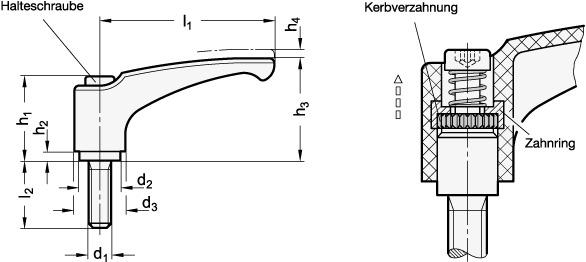

Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
Attributes
Adjustable
True
Colour
SG - black-grey, RAL 7021, matt
Connection thread d1
M 12
Handle body material
PA - plastic
Handle length l1
95
RoHS
Ja
Thread length l2
20
Weight
0.117 kg
d2
19
d3
26.5
h1
43
h2
5
h3
56.5
h4 Rastweg
4
