Elesa

Adjustable clamping lever PA SG

GN 604-63-M8-SG Elesa 237135
Item-no.: 1207393Supplier number: 604-63-M8-SGEAN: 4045525303171

Quantity: ​​ 1 PiecePackable
Item available in 206 variants:
Short-term Sourcing

Description
Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.

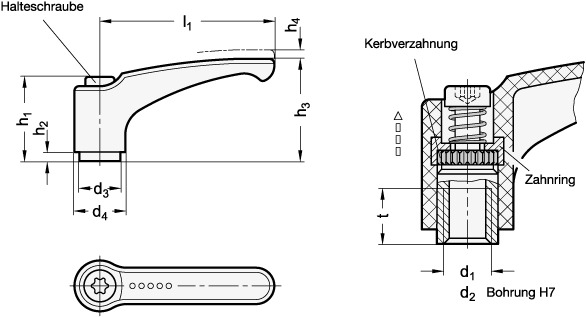

Attributes
Adjustable
True
Colour
SG - black-grey, RAL 7021, matt
Connection thread d1
M 8
Handle body material
PA - plastic
Handle length l1
63
RoHS
Ja
Weight
0.034 kg
d3
13.5
d4
19
h1
31
h2
3.5
h3
38.5
h4 Rastweg
4
tmin.
10
