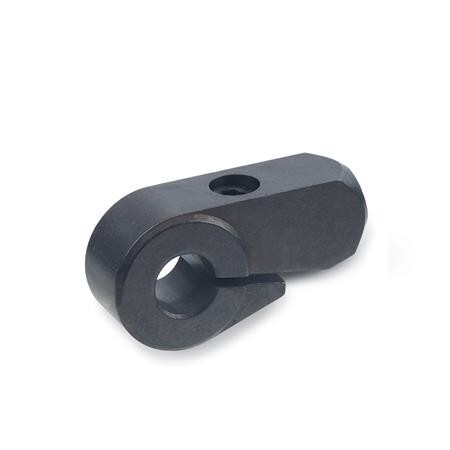

Clamping hub
GN 150-24-B10 M 8 for handle bar GN 310Item-no.: 1076049Supplier number: 150-24-B10EAN: 4045525056114
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Split hubs GN 150 are distinguished by the method of simple clamping to any shaft. This can be achieved without prior machining of the shaft, eliminating clamping parts and assembly work. A further advantage is the positioning of the lever arm to any required position. The shaft tolerance should be within h11, to transmit higher torques the hub can be supplied with a keyway.
Attributes
Connection bore d2
B 10
Diameter d
24
Handle body material
ST - Steel
Length l
36
RoHS
Ja
Weight
0.063 kg
b1
15.5
b2
13
d3
M 8
d4 Handle bar
10
t min.
11
tmin.
11
