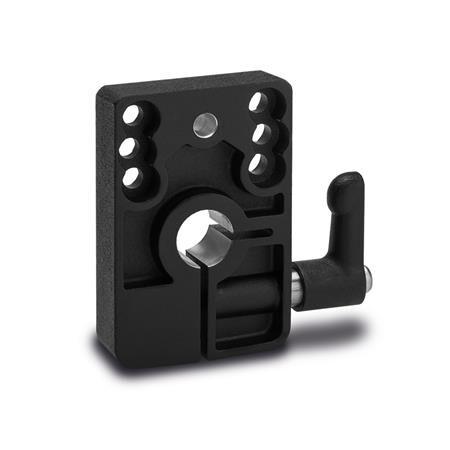

Clamping plate

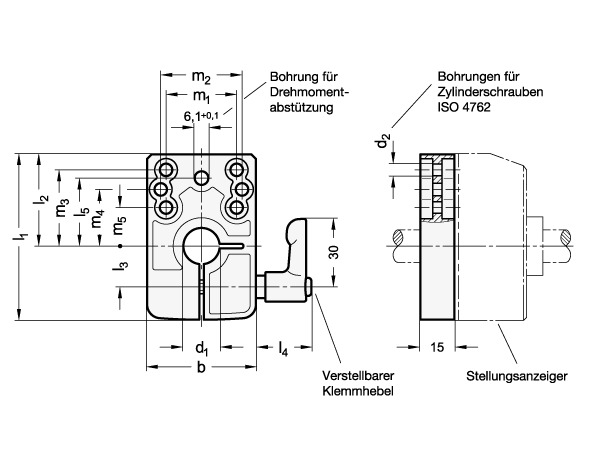

Clamping plates GN 9053.6 are used in connection with position indicators GN 9053 and GN 9153. The mounting holes support typical hole patterns. In a simpler way and without large construction and installation effort these spindles can, after adjustment, be clamped and locked. At the same time these plates are fitted with the bore Ø 6,1 to accept the torque limiter for the position indicator. The clamping plate can be installed so that the hand lever is positioned either to the right or the left.
