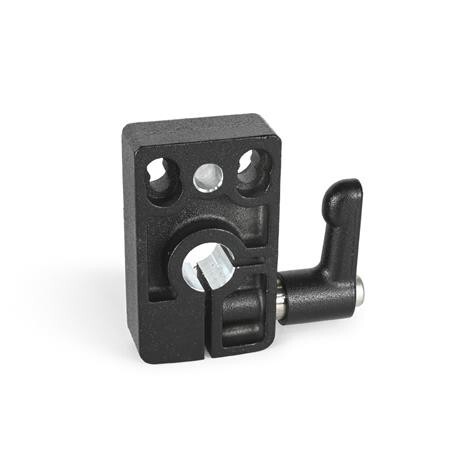

Clamping plate
GN 9054.6-33-B8ZD - Zinc die casting
Item-no.: 1482157Supplier number: 9054.6-33-B8EAN: 4045525603561
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Clamping plates GN 9054.6 are used in connection with position indicators GN 9054 / GN 9154. The mounting holes support typical bore hole patterns. In a simpler manner and without great construction and installation effort these spindles can, after adjustment, be clamped and locked. At the same time these plates are fitted with bore diameter 6.1 to accommodate the torque support of the position indicator. The clamping plate can be installed so that the hand lever is situated as required either on the right or the left.
Attributes
Borehole d1
B 8
L1
55
L2
30.5
Material
ZD - Zinc die casting
RoHS
Ja
Weight
0.148 kg
Width B
33
d2
4.5
l3
14.5
l4
24.5
l5
22
m1
20
m2
21
m3
23.5
m4
20
