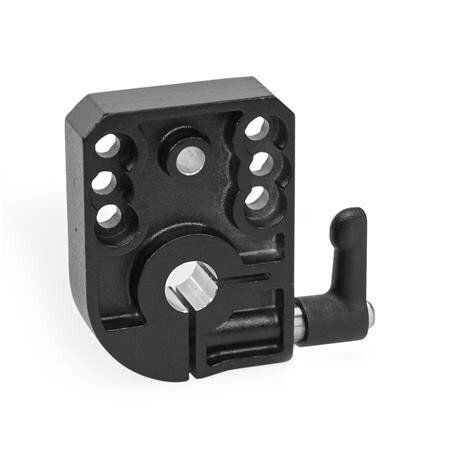

Clamping plate

Clamping plates GN 953.7 are used in connection with position indicators GN 953 / GN 953.2. The mounting holes support typical bore hole patterns. In a simpler manner and without great construction and installation effort these spindles can, after adjustment, be clamped and locked. At the same time these plates are fitted with bore diameter 6.1 to accommodate the torque support of the position indicator. The clamping plate can be installed so that the hand lever is situated as required either on the right or the left.
