Ratchet ring spanner, angled
SW 13 mm L=193.2 mm Hazet 606-13Item-no.: 1411462Supplier number: 606-13EAN: 4000896100996
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description

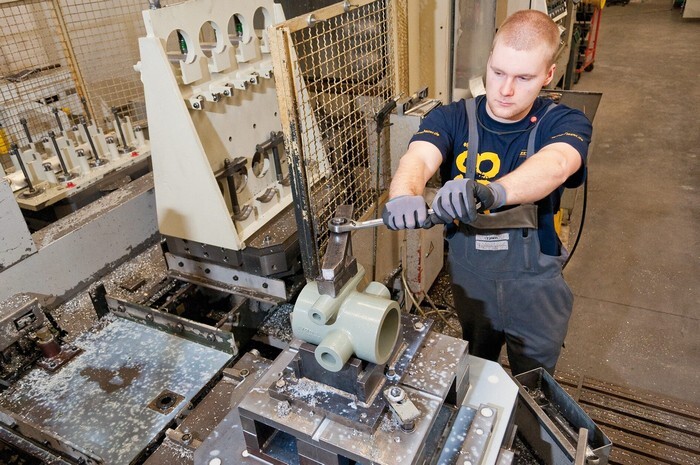

· Operation of screw connections in areas with restricted access, ratchet function enables continuous working · Long, slim design · Shank with sturdy HAZET double-T-profile · Box-end wrench with reversible ratchet · Fine-tooth, 72 teeth ∙ Operating angle 5° - Wrench size 8 and 9 mm: 60 teeth ∙ Operating angle 6° · Box-end side 13° offset · Head set at: 15° · Surface: chrome-plated · Output: Outside 12-point traction profile · Wrench size: 13 mm · Dimensions / length: 193.2 mm · Net weight: 0.1 kg.
Attributes
Actuation angle
5 °
Dimensions
193.2 mm

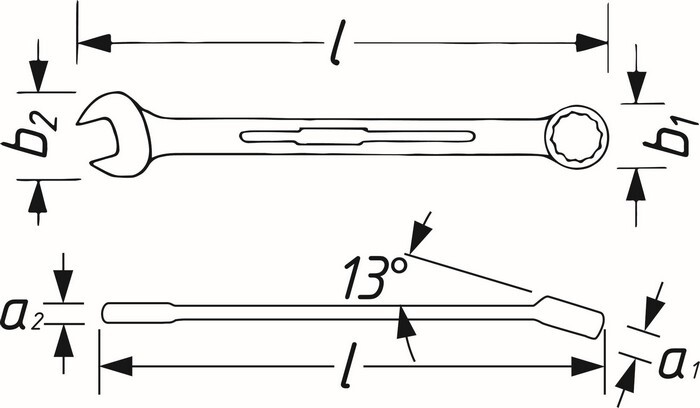

Head thickness (a1)
8.9 mm
Head thickness (a2)
6.7 mm
Head width (b1)
24.9 mm
Head width (b2)
27.2 mm
Jaw position
15 °
Length (battery)
193.2 mm
Material
Chrome vanadium
Net weight (kg)
0.1 kg
Number of teeth
72 Teeth
Output
Exterior double hexagonal traction profile
Series
auya_606
Surface
chrome-plated
Teeth
72
Version
switchable, ring side 13 °
Wrench width
13 mm
Wrench width (s1)
13 mm
Wrench width s1xs2
13
