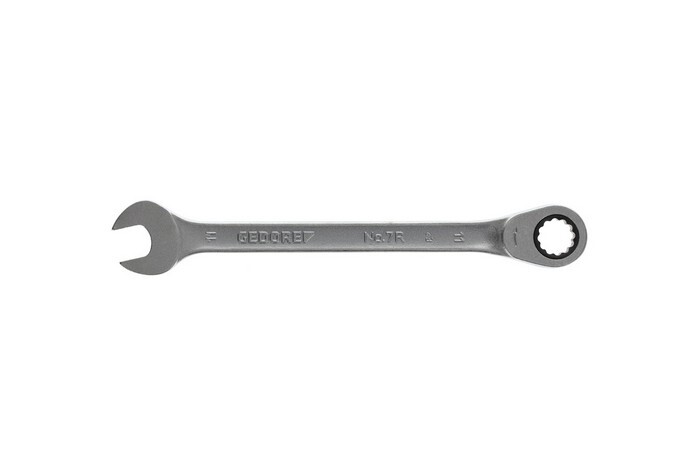

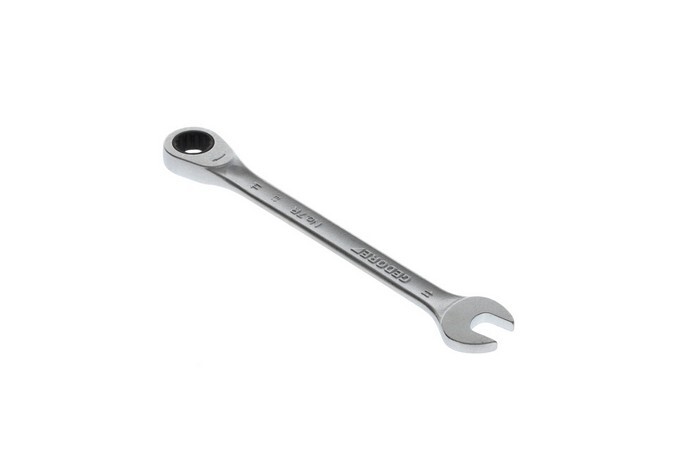

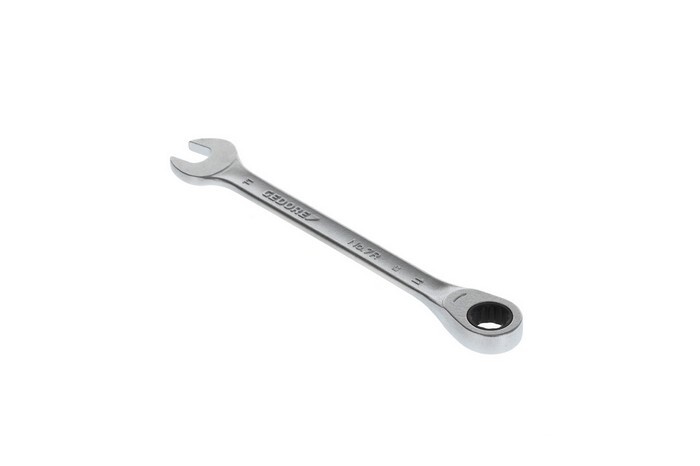

Ratchet ring spanner flat
SW11 mm, L164 mm Gedore 7 R 11Item-no.: 1027715Supplier number: 7 R 11EAN: 4010886889152
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description
With same size each end, UD-Profile, High torque transfer, Chrome-vanadium steel 31CrV3, Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated, Hot forged, Jaw: ground precisely to exact nominal size for optimum contact areas, In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet, Hollow profile comfortable to hold, Warp-resistant geometry with double T-girder effect, For ratchet loosening and fast tightening, Ring 13° offset from shaft, reversible

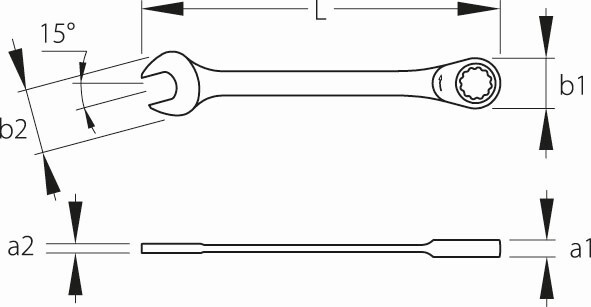

Attributes
Head height 1
8,1 mm
Head height 2
4,3 mm
Head width 1
22,5 mm
Head width 2
26 mm
Jaw position
15 °
Length (battery)
164 mm
Material
31CrV3
Net weight
0,063 kg
Return swivel angle
7 °
Ring profile
UNIT-DRIVE
Surface
chrome-plated
Teeth
52
Total height
8 mm
Total length
165 mm
Total width
26 mm
Version
straight
Wrench width
11 mm
