Ratchet ring spanner flat
SW19 mm, L250 mm Gedore 7 R 19Item-no.: 1027700Supplier number: 7 R 19customs tariff number: 82041100EAN: 4010886889268
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description
With same size each end, UD-Profile, High torque transfer, Chrome-vanadium steel 31CrV3, Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated, Hot forged, Jaw: ground precisely to exact nominal size for optimum contact areas, In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet, Hollow profile comfortable to hold, Warp-resistant geometry with double T-girder effect, For ratchet loosening and fast tightening, Ring 13° offset from shaft, reversible
Attributes
1000 V isoliert
Nein

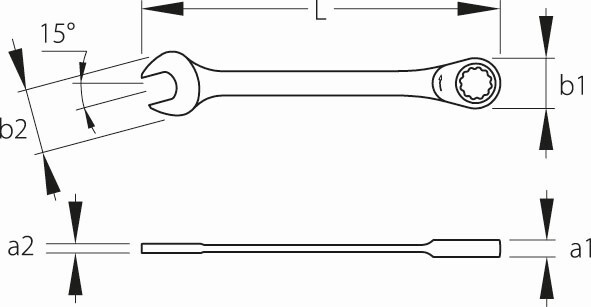

Head height 1
11,7 mm
Head height 2
6,4 mm
Head width 1
36,3 mm
Head width 2
42 mm
Inhalt
1 Stück
Jaw position
15 °
Length (battery)
250 mm
Material
31CrV3
Net weight
0,202 kg
Norm
nicht genormt
Return swivel angle
6 °
Ring profile
UNIT-DRIVE
Surface
chrome-plated
Teeth
60
Total height
12 mm
Total length
250 mm
Total width
44 mm
VDE zertifiziert
Nein
Version
straight
Wrench width
19,0 mm
