Description

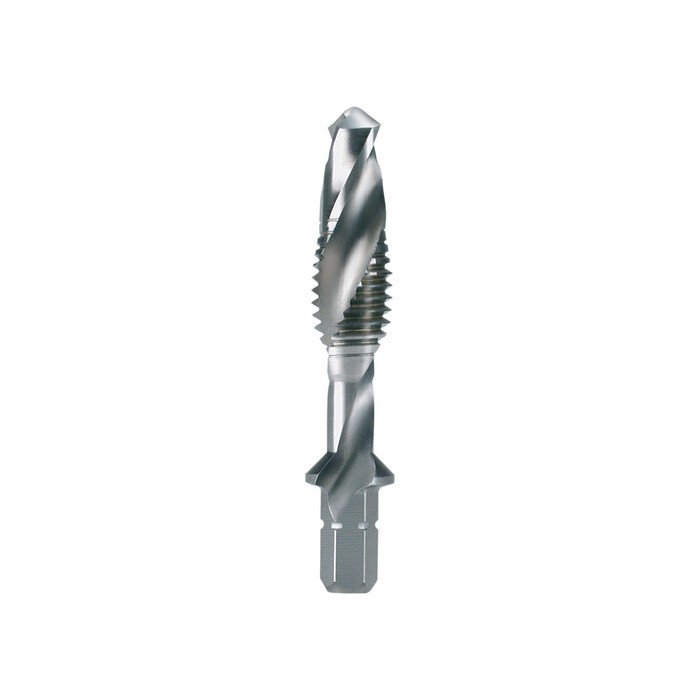

The combined machine tap is suitable for sheet metal working with right/left handed rotation cordless drilling machines. The thread is cut in one operation, without any tool changing. The tool incorporates a twist drill before the thread-tapping part. Applications: for unalloyed and low-alloyed steels up to 600 N/mm² strength, malleable cast iron and non-ferrous metals. Coperation work process: hole drilling with twist drill - thread cutting (tapping) - thread deburring - thread cleaning when using.








Attributes
Coat
Uncoated
Core hole diameter
8,5 mm
Cutting direction
right-hand cutting
Flank angle
60°
Length (battery)
75 mm
Material
HSS
Nominal thread size M
M 10
Series
RUKO043R270
Shaft
Bit shank
Shaft diameter
11,5 mm
Spiral length
17 mm
Thread pitch
1,5 mm
Tolerance
ISO 2 6H
