Claw spring ring for ball transfer units
GN 509.3-31-ANI - Stainless steel
Item-no.: 1223883Supplier number: 509.3-31-AEAN: 4045525458994
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description

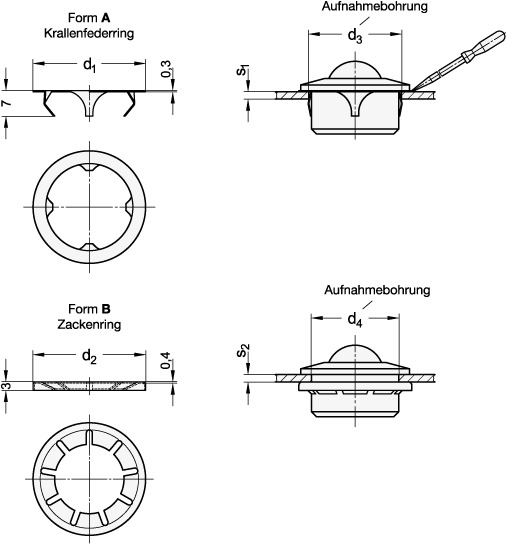

Clamp spring washers GN 509.3, type A allow ball transfers units to be mounted and removed from the installation side. Retaining rings GN 509.3, type B are mounted from the back. Ball transfers units mounted this way can no longer be dismantled. No restrictions exist with respect to sheet metal thickness.
Attributes
Form
A - Claw spring washer
Material
NI - Stainless steel
RoHS
Ja
Weight
0.001 kg
d1
31
d3
25
für Kugelrollen GN 509 / GN 509.1Größe
15
s1
2 ... 3
