Circular saw blade
160x20x1.8 mm, 48 Bosch 2.608.644.015 Expert for WoodItem-no.: 1275832Supplier number: 2608644015customs tariff number: 82023900EAN: 3165140795814
Quantity:
1 PiecePackable
Price and stock visible after login
Description

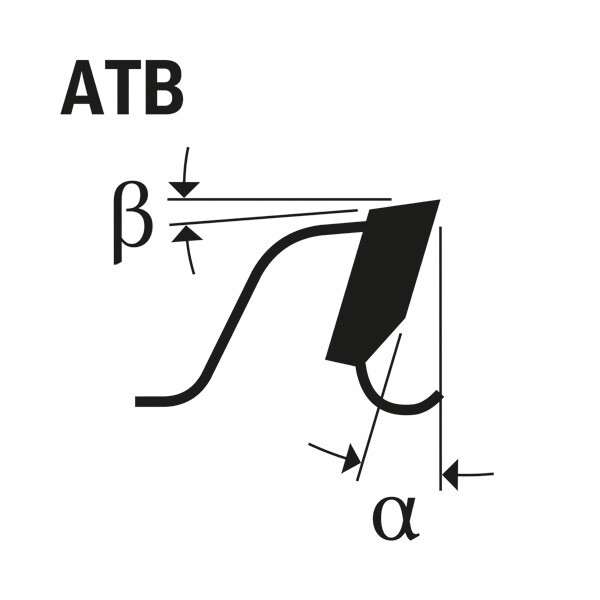

MicroteQ teeth (manufactured in-house) from high-density carbide combined with robust tooth shape ideal for universal use Depending on the number of teeth, different results can be achieved with all Expert for Wood Circular Saw Blades, which feature an ATB (Alternate Top Bevel) tooth geometry: when equipped with a high tooth count, the blade delivers clean cuts, whereas a low number of teeth guarantees solid and efficient cuts.
Attributes
Bohrung mm
20 mm
Borehole
20 mm

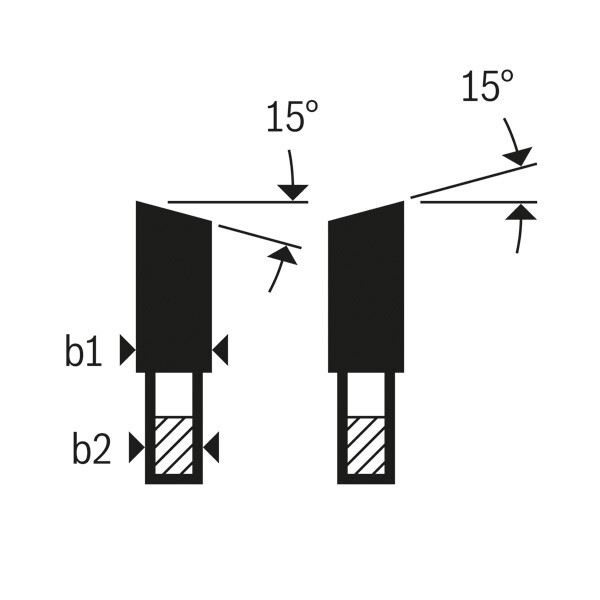

Clearance angle
15
Core sheet thickness (b2)
1.3 mm
Core sheet thickness (b2) mm
1,3 mm
Cutting angle
5 °
Cutting result
4
Cutting width (b1)
1.8 mm
Cutting width (b1) mm
1,8 mm
Cutting width (b1) mm / blade thickness (b2) mm
1.8/1.3
Freiwinkel ° β
15
Max. Rotationsgeschwindigkeit (U/min)
11900 U/min
Max. rotation speed
11900 U/min
NL/Durchmesser TKS
2/6/32,5
Number of teeth
48
Outer diameter
160 mm
Outer diameter mm
160 mm
Spanwinkel ° α
5
Tooth form
WZ
