Circular saw blade
190x20/16x2.4 mm, 54 Bosch 2.608.640.508 Multi MaterialItem-no.: 1275643Supplier number: 2608640508customs tariff number: 82023900EAN: 3165140192989
Quantity:
1 PiecePackable
Price and stock visible after login
Description

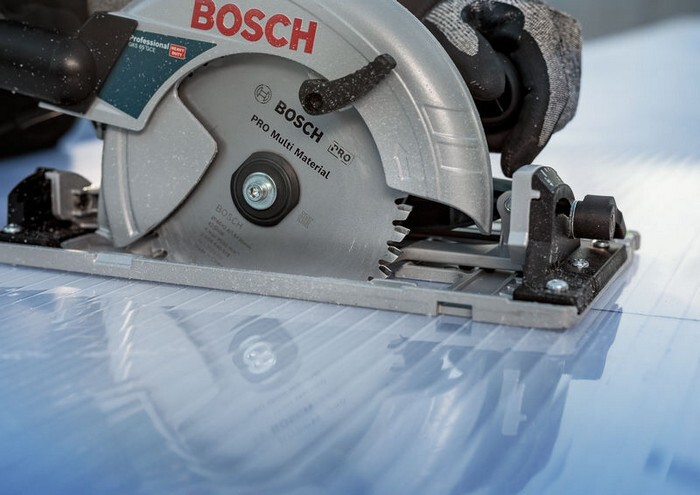

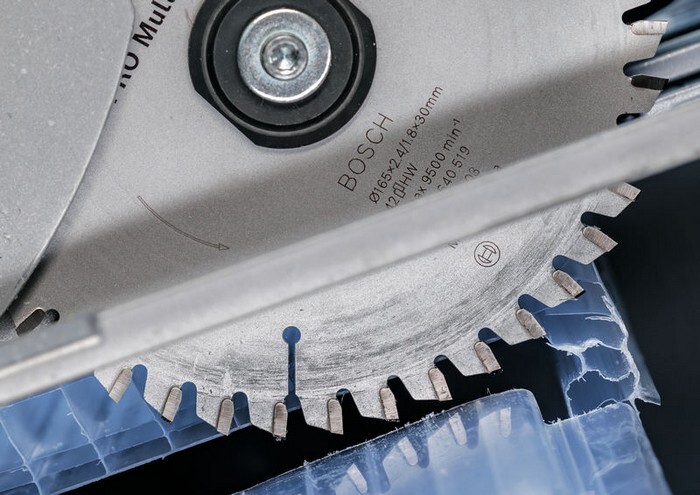

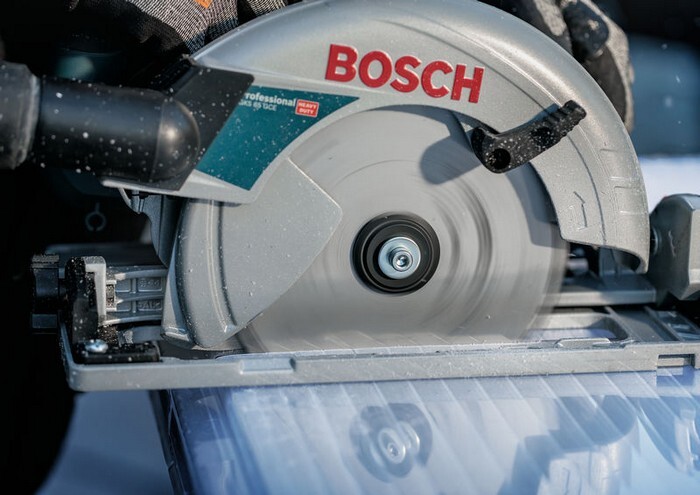

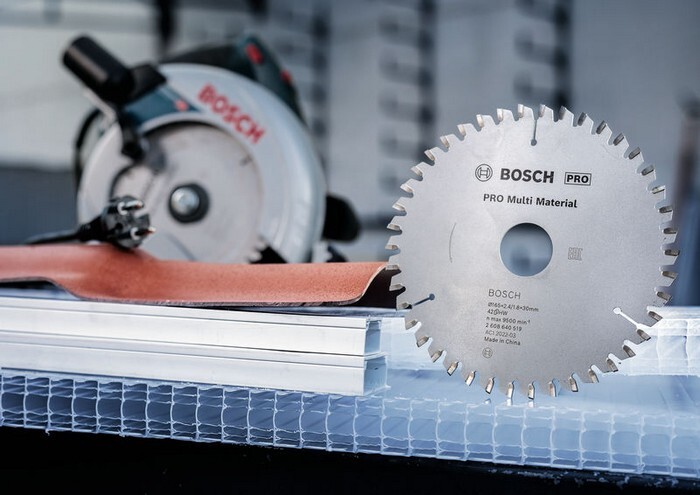

The Multi Material Circular Saw Blade delivers powerful cuts in a wide range of materials. Its high-quality precision-ground carbide teeth make the blade robust enough for cutting various materials, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in non-ferrous metals, aluminium, plastics, epoxy and wood. The HLTCG (High-Low Triple Chip Ground) teeth make the Multi Material Circular Saw Blade robust for working with abrasive materials.
Attributes
Bohrung mm
20 mm
Borehole
20 mm
Borehole with reducer ring
16 mm
Clearance angle
15
Core sheet thickness (b2)
1.8 mm
Core sheet thickness (b2) mm
1,8 mm
Cutting angle
-5 °
Cutting result
4
Cutting width (b1)
2.4 mm
Cutting width (b1) mm
2,4 mm
Cutting width (b1) mm / blade thickness (b2) mm
2.4/1.8
Freiwinkel ° β
15
Max. Rotationsgeschwindigkeit (U/min)
8000 U/min
Max. rotation speed
8000 U/min
Number of teeth
54
Outer diameter
7 1/2 Inch
Outer diameter inch
7 1/2 "
Outer diameter mm
190 mm
Spanwinkel ° α
-5
Tooth form
HLTCG
