Bosch

Circular saw blade

190x20x2.6 mm, 56 Bosch Expert for High Pressure Laminate
Item-no.: 1275945Supplier number: 2608644134customs tariff number: 82023900EAN: 3165140797009

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description

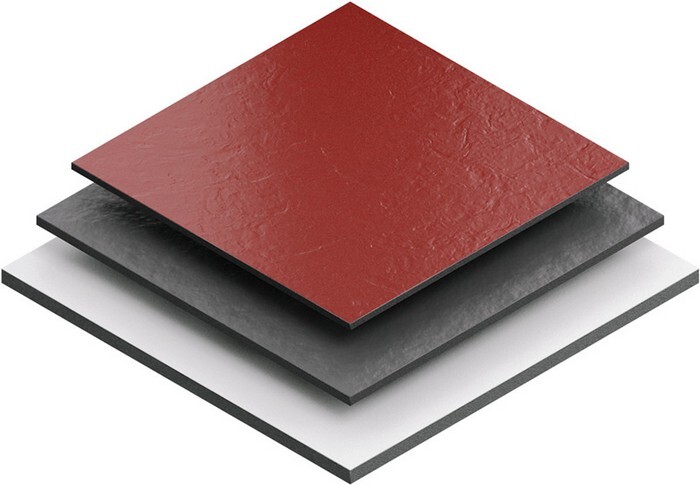

The Expert for High Pressure Laminate Circular Saw Blade performs perfectly when cutting in high-pressure laminate. The blade´s unique Extra Hard Microteq teeth are manufactured in-house by Bosch from highly durable carbide grains. The fine quality woodworkers expect, providing the capability to handle the extreme conditions of professional construction. This high-performance cutting is also strengthened by the blade´s ProteQtion coating that prevents corrosion and delivers reliable cutting while reducing friction. Additionally, this product is specially designed with anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration. Use this saw blade in high-pressure laminate panels. Featuring HLTCG (High-Low Triple Chip Ground) teeth, the Expert for High Pressure Laminate Circular Saw Blade is robust for working with abrasive materials.
Attributes
Bohrung mm
20 mm
Borehole
20 mm
Clearance angle
17
Core sheet thickness (b2)
1.6 mm
Core sheet thickness (b2) mm
1,6 mm
Cutting angle
0 °
Cutting result
4
Cutting width (b1)
2.6 mm
Cutting width (b1) mm
2,6 mm
Cutting width (b1) mm / blade thickness (b2) mm
2.6/1.6
Freiwinkel ° β
17
Max. Rotationsgeschwindigkeit (U/min)
10000 U/min
Max. rotation speed
10000 U/min
NL/Durchmesser TKS
2/6/32,5
Number of teeth
56
Outer diameter
190 mm
Outer diameter mm
190 mm
Spanwinkel ° α
0
Tooth form
HLTCG
