Circular saw blade
200x30x2.4 mm, 54 Bosch 2.608.640.510 Multi MaterialItem-no.: 1275644Supplier number: 2608640510customs tariff number: 82023900EAN: 3165140193009
Quantity:
1 PiecePackable
Price and stock visible after login
Description

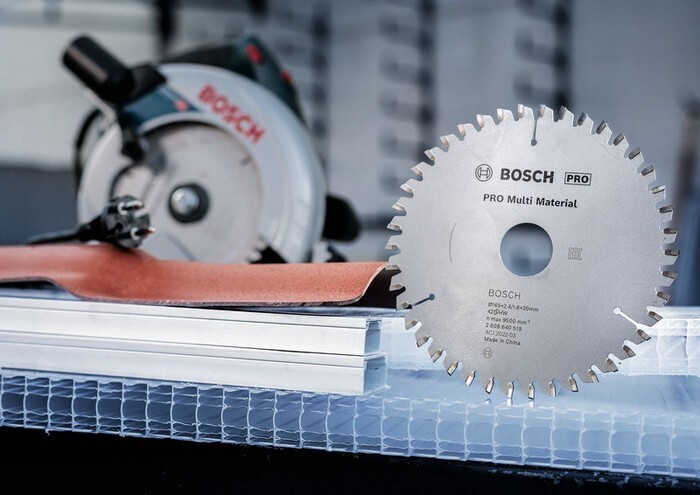

The Multi Material Circular Saw Blade delivers powerful cuts in a wide range of materials. Its high-quality precision-ground carbide teeth make the blade robust enough for cutting various materials, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in non-ferrous metals, aluminium, plastics, epoxy and wood. The HLTCG (High-Low Triple Chip Ground) teeth make the Multi Material Circular Saw Blade robust for working with abrasive materials.
Attributes
Bohrung mm
30 mm
Borehole
30 mm
Clearance angle
15
Core sheet thickness (b2)
1.8 mm
Core sheet thickness (b2) mm
1,8 mm
Cutting angle
-5 °
Cutting result
4
Cutting width (b1)
2.4 mm
Cutting width (b1) mm
2,4 mm
Cutting width (b1) mm / blade thickness (b2) mm
2.4/1.8
Freiwinkel ° β
15
Max. Rotationsgeschwindigkeit (U/min)
7500 U/min
Max. rotation speed
7500 U/min
Number of teeth
54
Outer diameter
200 mm
Outer diameter mm
200 mm
Spanwinkel ° α
-5
Tooth form
HLTCG
