Circular saw blade
200x32x2.8 mm, 60 Bosch 2.608.644.104 Expert for AluminiumItem-no.: 1275916Supplier number: 2608644104customs tariff number: 82023900EAN: 3165140796705
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The Expert for Aluminium Circular Saw Blade makes perfect cuts in aluminium. Unique Extra Hard Microteq teeth from Bosch in-house production are made from very fine carbide grains, maximising the blade's lifetime and performance. This performance is also strengthened by the blade's ProteQtion coating that prevents corrosion and delivers reliable cutting while reducing friction. Moreover, this product features anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration. Use this saw blade for aluminium, non-ferrous metals, plastics, epoxy and wood. The Expert for Aluminium Circular Saw Blade features HLTCG (High-Low Triple Chip Ground) teeth, which make the blade robust for cutting aluminium.
Attributes
Bohrung mm
32 mm
Borehole
32 mm
Clearance angle
15
Core sheet thickness (b2)
1.8 mm
Core sheet thickness (b2) mm
1,8 mm
Cutting angle
-5 °
Cutting result
4

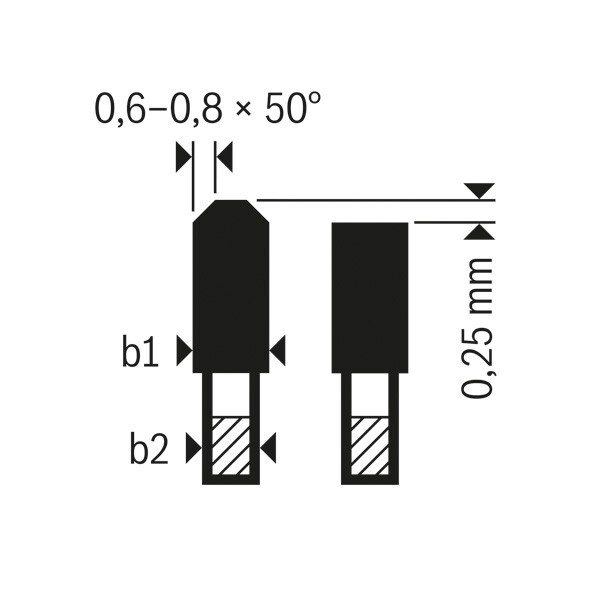

Cutting width (b1)
2.8 mm
Cutting width (b1) mm
2,8 mm
Cutting width (b1) mm / blade thickness (b2) mm
2.8/1.8
Freiwinkel ° β
15
Max. Rotationsgeschwindigkeit (U/min)
9500 U/min
Max. rotation speed
9500 U/min
NL/Durchmesser TKS
2/7/42
Number of teeth
60
Outer diameter
200 mm
Outer diameter mm
200 mm
Spanwinkel ° α
-5

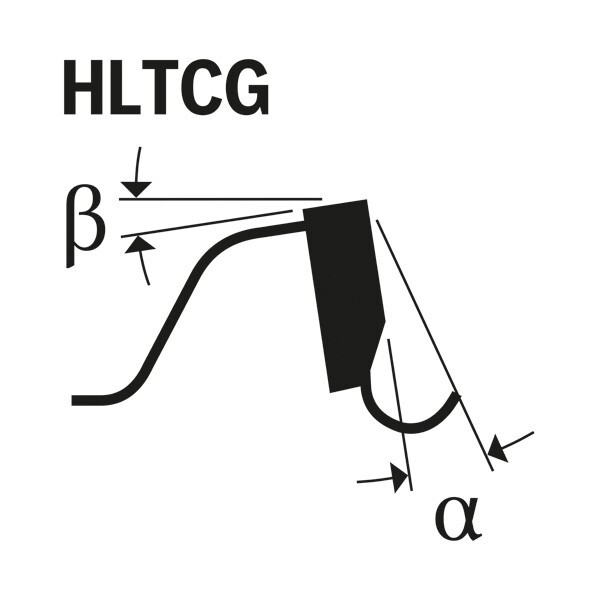

Tooth form
HLTCG
