Description

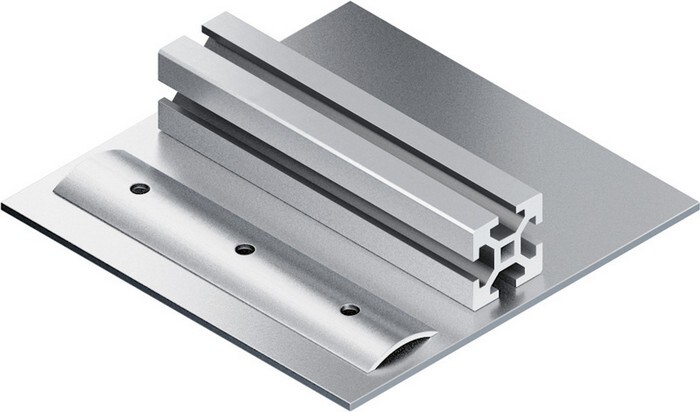

The Expert for Aluminium Circular Saw Blade makes perfect cuts in aluminium. Unique Extra Hard Microteq teeth from Bosch in-house production are made from very fine carbide grains, maximising the blade's lifetime and performance. This performance is also strengthened by the blade's ProteQtion coating that prevents corrosion and delivers reliable cutting while reducing friction. Moreover, this product features anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration. Use this saw blade for aluminium, non-ferrous metals, plastics, epoxy and wood. The Expert for Aluminium Circular Saw Blade features HLTCG (High-Low Triple Chip Ground) teeth, which make the blade robust for cutting aluminium.
Attributes
Bohrung mm
30 mm
Borehole
30 mm
Core sheet thickness (b2)
2 mm
Core sheet thickness (b2) mm
2 mm
Cutting angle
-5 °
Cutting result
4
Cutting width
2,8 mm
Cutting width (b1)
2.8 mm
Cutting width (b1) mm
2,8 mm
Cutting width (b1) mm / blade thickness (b2) mm
2,8/2 mm
Exterior-Ø
254 mm
Freiwinkel ° β
15
Max. Rotationsgeschwindigkeit (U/min)
7500 U/min
Max. rotation speed
7500 U/min
NL/Durchmesser TKS
2/9/46
Number of teeth
80
Outer diameter
254 mm
Outer diameter mm
254 mm
Spanwinkel ° α
-5
Tooth form
HLTCG
