Description

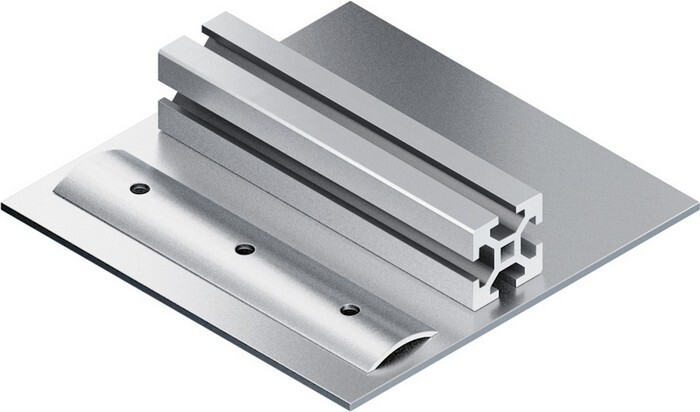

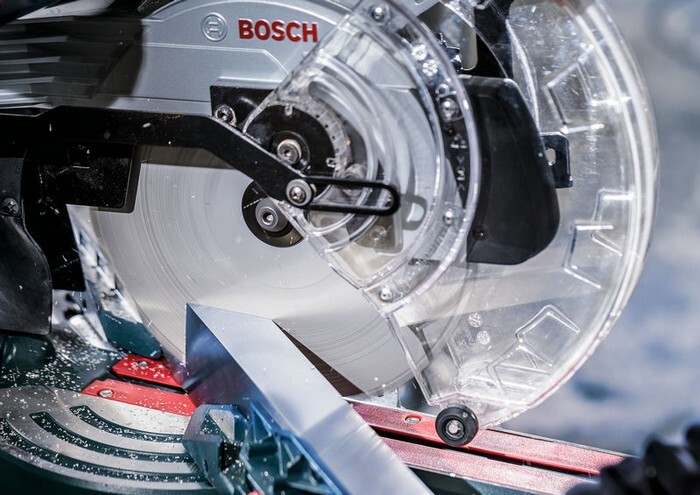

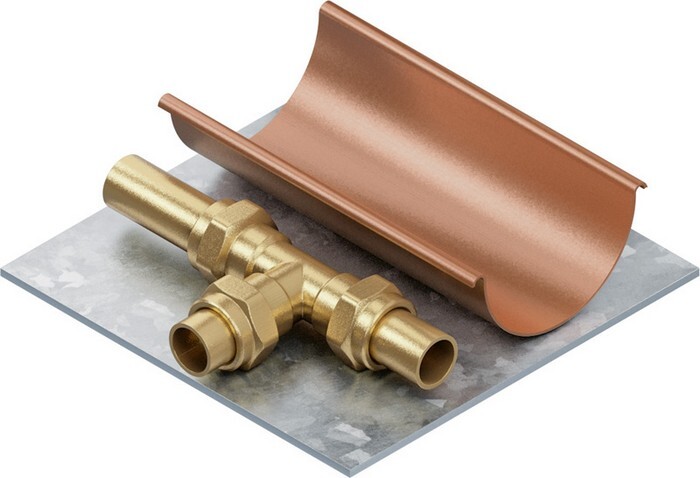

The Multi Material Circular Saw Blade delivers powerful cuts in a wide range of materials. Its high-quality precision-ground carbide teeth make the blade robust enough for cutting various materials, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in non-ferrous metals, aluminium, plastics, epoxy and wood. The HLTCG (High-Low Triple Chip Ground) teeth make the Multi Material Circular Saw Blade robust for working with abrasive materials.
Attributes
Borehole
30 mm
Core sheet thickness (b2)
2.5 mm
Core sheet thickness (b2) mm
2,5 mm
Cutting angle
-5 °
Cutting result
4
Cutting width
3,2 mm
Cutting width (b1)
3.2 mm
Cutting width (b1) mm
3,2 mm
Cutting width (b1) mm / blade thickness (b2) mm
3,2/2,5 mm
Exterior-Ø
254 mm
Freiwinkel ° β
15
Material
HM
Max. rotation speed
6000 U/min
Number of teeth
96
Outer diameter
254 mm
Spanwinkel ° α
-5
Tooth form
HLTCG
