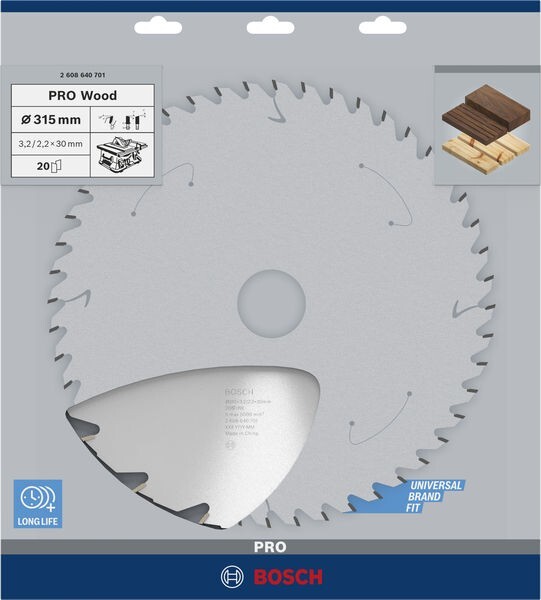

Circular saw blade
315x30x3.2 mm, 20, SB2 Bosch 2.608.640.701 Construct WoodItem-no.: 1043633Supplier number: 2608640701customs tariff number: 82023900EAN: 3165140194808
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The Construct Wood Circular Saw Blade is durable when cutting construction site timber with nails and concrete residues. Its high-quality precision-ground carbide teeth make the blade robust for tough applications. Moreover, its expansion slots lower vibration during use, which dampens noise and reduces heat development. The blade features a base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) which ensures accuracy. Use this saw blade in construction timber with nails and concrete residues. Construct Wood Circular Saw Blade is durable when cutting construction site timber with nails and concrete residues
Attributes
Bohrung mm
30 mm
Borehole
30 mm
Core sheet thickness (b2)
2.2 mm
Core sheet thickness (b2) mm
2,2 mm
Cutting angle
20 °
Cutting result
1
Cutting width
3,2 mm
Cutting width (b1)
3.2 mm
Cutting width (b1) mm
3,2 mm
Cutting width (b1) mm / blade thickness (b2) mm
3,2/2,2 mm
Exterior-Ø
315 mm
Freiwinkel ° β
10
Material
Carbide
Max. Rotationsgeschwindigkeit (U/min)
5000 U/min
Max. rotation speed
5000 U/min
NL/Durchmesser TKS
7/42
Number of teeth
20
Outer diameter
315 mm
Outer diameter mm
315 mm
Spanwinkel ° α
20
Tooth form
WZ
