Bosch

Circular saw blade

350x30x2.9 mm, 60 Bosch Expert for Sandwich Panel
Item-no.: 1275959Supplier number: 2608644165customs tariff number: 82023900EAN: 3165140799539

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description

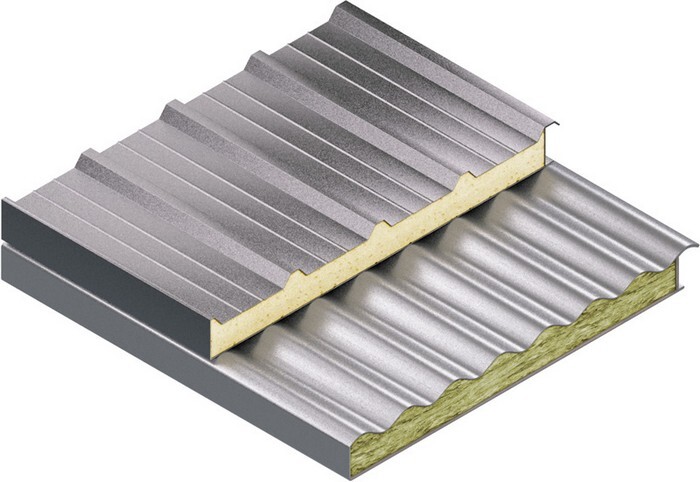

The Expert for Sandwich Panel Circular Saw Blade offers a smooth performance in sandwich panel materials. A special tooth shape allows for cutting with ease through sheet steel, while keeping the connection between steel layers and insulation materials. The high-performance blade features unique extra-hard Microteq teeth that are manufactured in-house by Bosch from highly durable carbide grains. This performance is further supported by the blade´s Proteqtion coating that prevents corrosion and delivers reliable cutting while reducing friction. Additionally, this product is specially designed with anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration. Use this saw blade in sandwich panels with steel layers. The MTCG (Multi-Purpose Triple Chip Grind) tooth configuration of the Expert for Sandwich Panel Circular Saw Blade ensures a long lifetime even in tough applications.
Attributes
Bohrung mm
30 mm
Borehole
30 mm
Clearance angle
12
Core sheet thickness (b2)
2.5 mm
Core sheet thickness (b2) mm
2,5 mm
Cutting angle
0 °
Cutting result
3
Cutting width (b1)
2.9 mm
Cutting width (b1) mm
2,9 mm
Cutting width (b1) mm / blade thickness (b2) mm
2.9/2.5
Freiwinkel ° β
12
Max. Rotationsgeschwindigkeit (U/min)
5400 U/min
Max. rotation speed
5400 U/min
NL/Durchmesser TKS
2/7/42
Number of teeth
60
Outer diameter
350 mm
Outer diameter mm
350 mm
Spanwinkel ° α
0
Tooth form
HLTCG
