Bosch

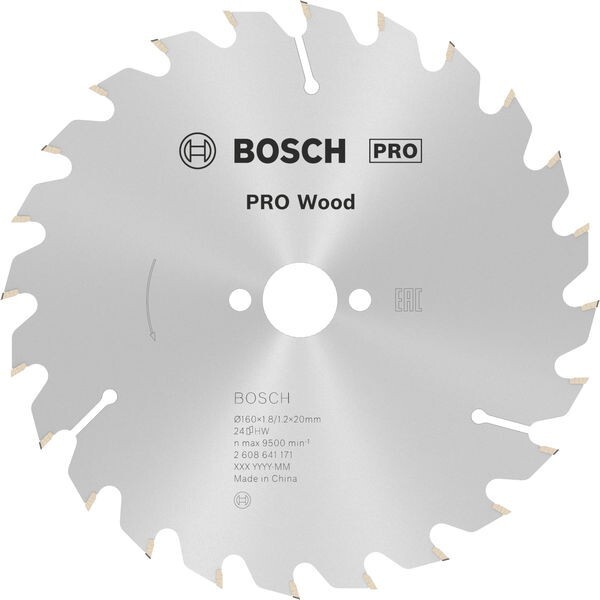

Kreissägeblattfür Handkreissägen

160x20/16x1,8 mm, 24 Bosch 2.608.641.171 Optiline Wood
Item-no.: 1275717Supplier number: 2608641171EAN: 3165140373531

Quantity: ​​ 1 PiecePackable
Item available in 70 variants:
Short-term Sourcing

Description
The Optiline Wood Circular Saw Blade delivers precise quality cuts in all types of wood. Its high-quality precision-ground carbide teeth enable clean cuts, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in all types of wood and wooden materials. Depending on the number of teeth, different results can be achieved with all Optiline Wood Circular Saw Blades, which feature ATB (Alternate Top Bevel) tooth geometry: when equipped with a high tooth count, the blade delivers clean cuts, whereas a low number of teeth guarantees solid and efficient cuts.
Attributes
Borehole
20 mm
Borehole with reducer ring
16 mm
Clearance angle
15
Core sheet thickness (b2)
1.2 mm
Cutting angle
15 °
Cutting result
2
Cutting width (b1)
1.8 mm
Cutting width (b1) mm / blade thickness (b2) mm
1.8/1.2
Freiwinkel ° β
15
Max. rotation speed
9500 U/min
NL/Durchmesser TKS
6/32
Number of teeth
24
Outer diameter
160 mm
Schnittbreite (b1) mm
1,8 mm
Spanwinkel ° α
15
Stammblattstärke (b2) mm
1,2 mm
Tooth form
WZ
