Products
Bosch

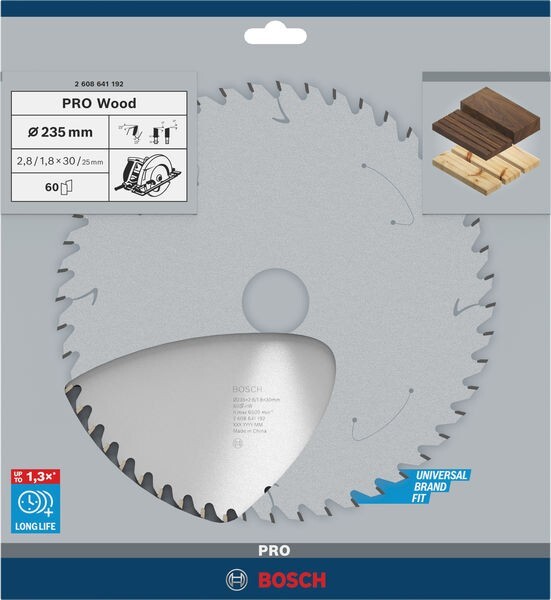

Kreissägeblattfür Handkreissägen

235x30/25x2,8 mm, 60 Bosch 2.608.641.192 Optiline Wood
Item-no.: 1170364Supplier number: 2608641192customs tariff number: 82023900EAN: 3165140373746

Quantity: ​​ 1 PiecePackable
Item available in 69 variants:
Short-term Sourcing

Description

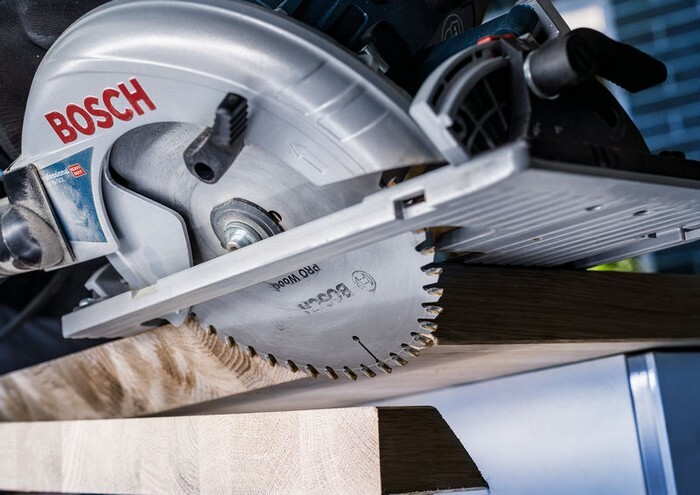

The Optiline Wood Circular Saw Blade delivers precise quality cuts in all types of wood. Its high-quality precision-ground carbide teeth enable clean cuts, while its base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy. Furthermore, the blade's expansion slots lower vibration during use, which dampens noise and reduces heat development. Use this saw blade in all types of wood and wooden materials. Depending on the number of teeth, different results can be achieved with all Optiline Wood Circular Saw Blades, which feature ATB (Alternate Top Bevel) tooth geometry: when equipped with a high tooth count, the blade delivers clean cuts, whereas a low number of teeth guarantees solid and efficient cuts.
Attributes
Borehole
30 mm
Borehole with reducer ring
25 mm
Clearance angle
15
Core sheet thickness (b2)
1.8 mm
Core sheet thickness (b2) mm
1,8 mm
Cutting angle
15 °
Cutting result
4
Cutting width (b1)
2.8 mm
Cutting width (b1) mm
2,8 mm
Cutting width (b1) mm / blade thickness (b2) mm
2.8/1.8
Freiwinkel ° β
15
Max. rotation speed
6500 U/min
Number of teeth
60
Outer diameter
235 mm
Spanwinkel ° α
15
Tooth form
WZ
