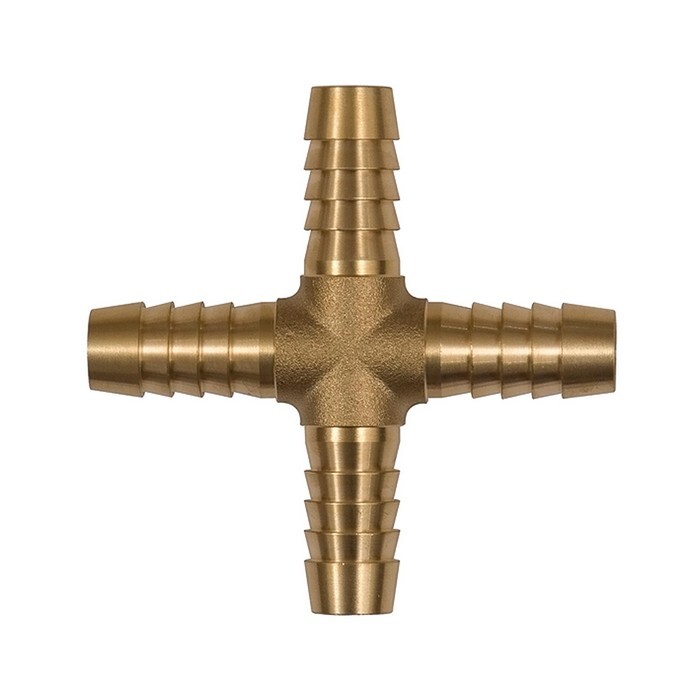

Cross hose connection piece for
Hose LW 13 mm brassItem-no.: 1331604Supplier number: 173 Ecustoms tariff number: 74122000EAN: 4047322487573
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Cross push-on connectors, for hose I.D. 13 mm, brass CW617N, Max. working pressure 10 bar, Max. medium/ambient temp. 90 °C.
Attributes
Ambient temperature max.
90 °C
For hose
LW 13 mm

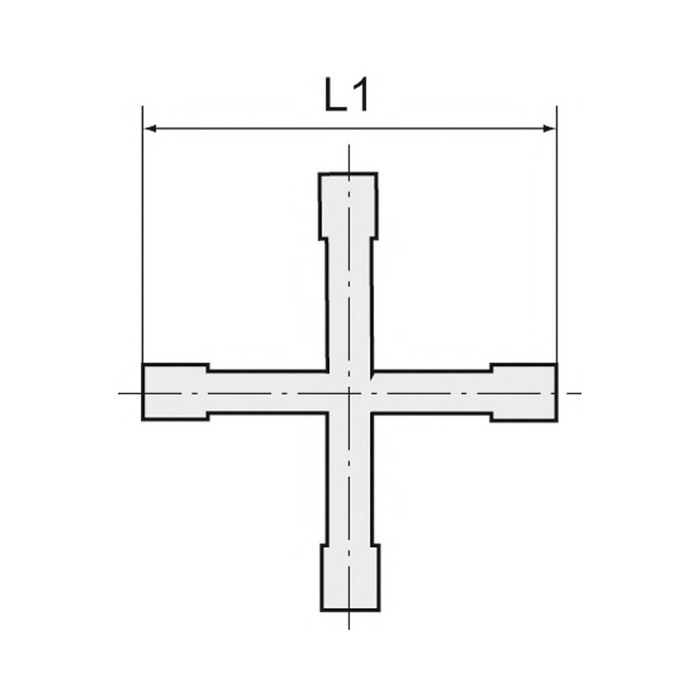

L1
70,0 mm
Material
Brass CW617N
Medium temperature max.
90 °C
Riegler article number
134516
Working pressure max.
10 bar
