Ganter

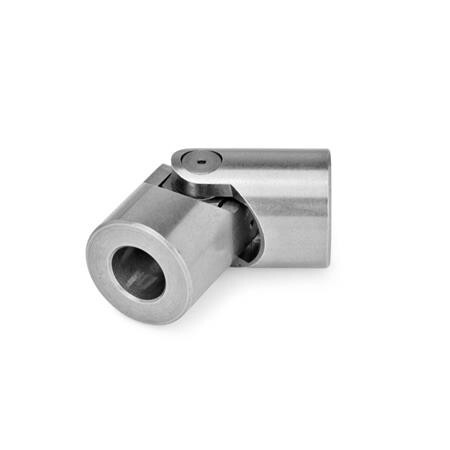

Universal joint with plain bearing

DIN 808-16-B6-34-EG simple, drill hole
ST - Steel
Item-no.: 1077058Supplier number: DIN 808-16-B6-34-EGEAN: 4045525376977

Quantity: ​​ 1 PiecePackable
Item available in 69 variants:
Short-term Sourcing

Description
The permissible r.p.m. of universal joints with friction bearing DIN 808 is to a large extent dependent on the type of application such as load, duration, angular disposition as well as lubrication . For over 1000 r.p.m. universal joints with needle bearing should be used For continuous use ample lubrication is essential. This achieved by fitting the joint with a grease filled gaiter GN 808.1.
Attributes
Bore labelling
B - without hub groove
Borehole d2
6
Borehole filtercolumn
B 6
Form
EG - single, plain bearing
Length l1 (Form EG)
34
Material
ST - Steel
Outer diameter d1
16
RoHS
Ja
Weight
0.040 kg
l3
17
t max. Einbaulänge der Welle
8
t max. installation length of the shaft
8
