Kreuzgelenk mit Gleitlager, Doppelt
DIN 808-16-K8-62-DGST - Steel
Item-no.: 1213544Supplier number: DIN 808-16-K8-62-DGcustoms tariff number: 84831050EAN: 4045525377103
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
The permissible r.p.m. of universal joints with friction bearing DIN 808 is to a large extent dependent on the type of application such as load, duration, angular disposition as well as lubrication . For over 1000 r.p.m. universal joints with needle bearing should be used For continuous use ample lubrication is essential. This achieved by fitting the joint with a grease filled gaiter GN 808.1.

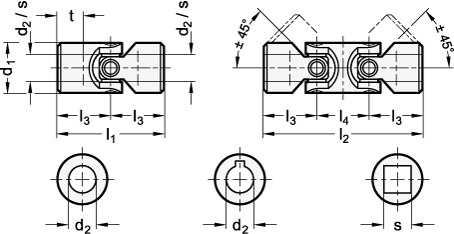

Attributes
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole d2
8
Borehole filtercolumn
B 8
Form
DG - double, plain bearing
Length l2 ( Form DG)
62
Material
ST - Steel
Outer diameter d1
16
RoHS
Ja
Weight
0.065 kg
l3
20
l4
22
t max. Einbaulänge der Welle
11
t max. installation length of the shaft
11
