Cross clamp connector
GN 131-B10-B10-2-SWAL - Aluminium
Item-no.: 1188807Supplier number: 131-B10-B10-2-SWEAN: 4045525644359
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description

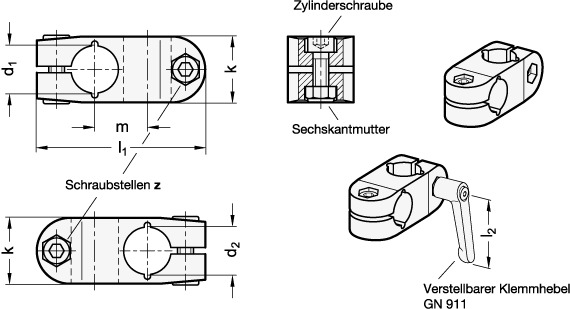

The clamping bores of two-way connector clamps GN 131 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw locations z, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Borehole d1
B 10
Borehole d2
B 10
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
L1
64
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl2
63
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.084 kg
k Clamping length
25
m
20
x4
911-63-M6-20-SR
z Bolting point
M6-20
