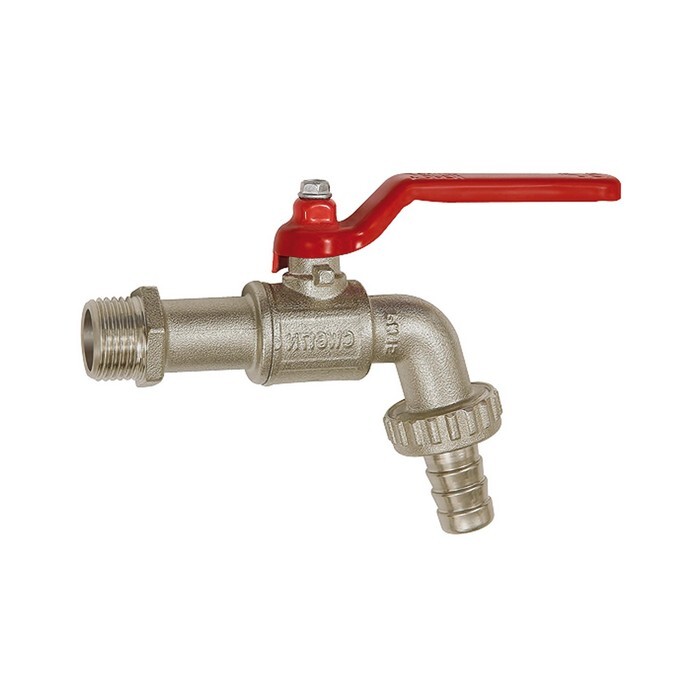

Ball outlet tap with hose nozzle
DN15 AG 1/2", max 15 bar Nickel-plated brassItem-no.: 1246187Supplier number: KAH.12customs tariff number: 84818081EAN: 4047322395137
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Ball drain valve, nickel-plated brass, Temperature range -20 °C to 80 °C, G 1/2 ET, DN 15, PN max. 15 bar. With hose connector.
Attributes
A
80,0 mm
Application range
Water, gaseous and non-aggressive media, compressed air
Connection
G 1/2 AG
DN
15
For hose
LW 13 mm
Grommet connection thread
G 3/4
L
137,0 mm
Material
Nickel-plated brass
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
PN
15 bar
Riegler article number
103417
Sealing material
NBR
Thread material
Nickel-plated brass
Thread standard
G-thread according to ISO 228-1
h
93,0 mm
