Ball joint

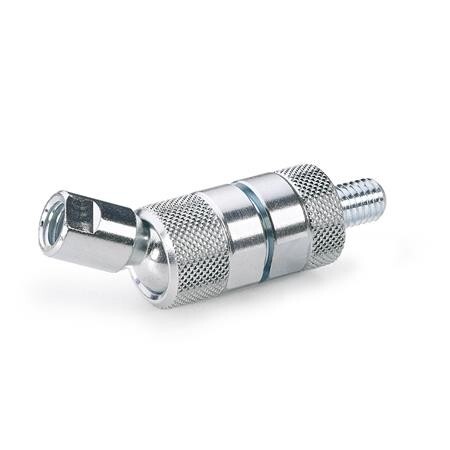

GN 782-M10-KI-2 Female thread, ball with male threadST - Stahl
Item-no.: 1213333Supplier number: 782-M10-KI-2customs tariff number: 84831050EAN: 4045525374102
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The clamping nut of the ball joints GN 782 can be set to give a required thrust on the Belleville spring washers in order to increase the resistance to the ball movement. At the same time the Belleville spring washers act as safety washers for the screws. Once the max. thrust to the Belleville spring washers is reached the ball arm is firmly immobilised in position over the clamping nut and screw. The maximum tightening torque specified in the table may not be exceeded.
Attributes
Code number
2 - Mounting side with screw
Form
KI - Ball with internal thread
L1
15
L2
12
Material
ST - Steel
Recommended tightening torque in Nm ≈
35
RoHS
Ja
Screw thread d1
M 10
Weight
0.108 kg
d2
M 10
d3
21
d4
13
empfohlenes Anzugsdrehmoment
35 Nm
l3
14
l4
26
l5
33.5
l7
20
l7 ≈
20
sw1
19
sw2
11
