Ball joint

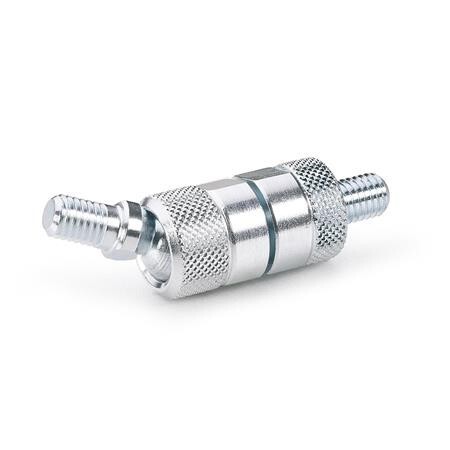

GN 782-M12-KS-2 AG, ball with external threadST - Steel
Item-no.: 1224516Supplier number: 782-M12-KS-2EAN: 4045525943032
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description

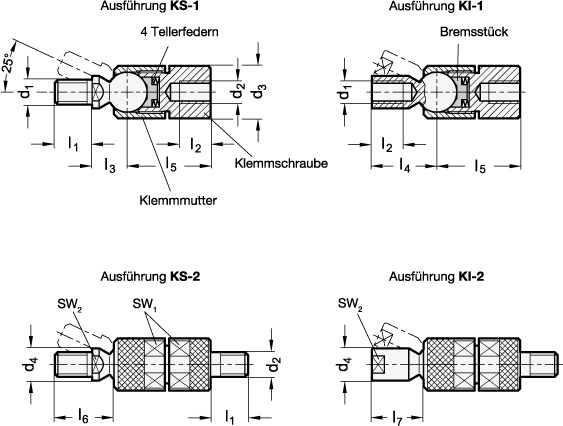

The clamping nut of the ball joints GN 782 can be set to give a required thrust on the Belleville spring washers in order to increase the resistance to the ball movement. At the same time the Belleville spring washers act as safety washers for the screws. Once the max. thrust to the Belleville spring washers is reached the ball arm is firmly immobilised in position over the clamping nut and screw. The maximum tightening torque specified in the table may not be exceeded.
Attributes
Code number
2 - Mounting side with screw
Form
KS - Ball with screw
L1
18
Material
ST - Steel
Recommended tightening torque in Nm ≈
45
RoHS
Ja
Screw thread d1
M 12
Weight
0.251 kg
d2
M 12
d3
28
d4
16
empfohlenes Anzugsdrehmoment
45 Nm
l3
20
l5
44
l6
31.5
l6 ≈
31.5
sw1
25
sw2
14
