Angled ball handle
DIN 6337-160-M20-N Female thread, St turned green.Item-no.: 1209987Supplier number: DIN 6337-160-M20-NEAN: 4045525342521
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
The official DIN standard sheet specifies additional sizes 200 - M24 / B24.
Attributes

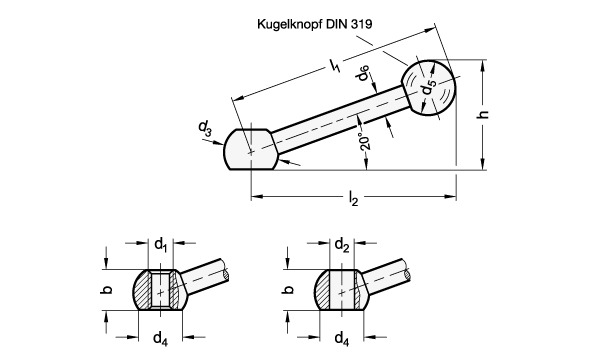

Connection thread d1
M 20
Form
N - Angled handle with thread
Handle body material
ST - Steel
Handle length l1
160
L2
152
RoHS
Ja
Weight
0.425 kg
b
30
d3
40
d4
31
d5
40
d6
18
h
80
h ≈
80
l2 ≈
152
