Angled ball handle
DIN 6337-63-M8-N Female thread, St turned green.Item-no.: 1170809Supplier number: DIN 6337-63-M8-NEAN: 4045525342668
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
The official DIN standard sheet specifies additional sizes 200 - M24 / B24.

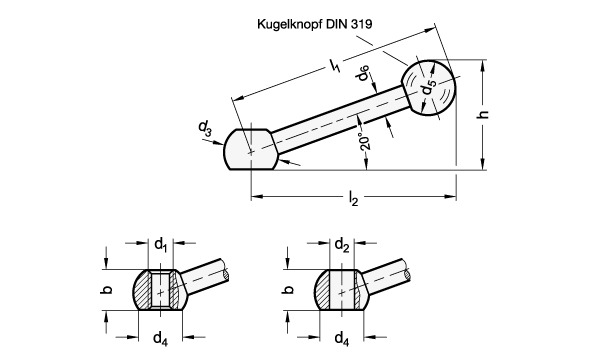

Attributes
Connection thread d1
M 8
Form
N - Angled handle with thread
Handle body material
ST - Steel
Handle length l1
63
L2
60
RoHS
Ja
Weight
0.032 kg
b
12
d3
16
d4
12.5
d5
20
d6
8
h
33
h ≈
33
l2 ≈
60
