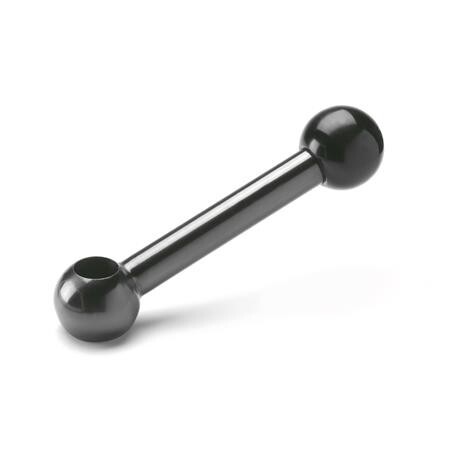

Angled ball handle
DIN 6337-80-B10-L Hole H7, St turned green.Item-no.: 1209989Supplier number: DIN 6337-80-B10-LEAN: 4045525342705
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
The official DIN standard sheet specifies additional sizes 200 - M24 / B24.
Attributes
Connection bore d2
B 10
Form
L - Angled handle with hole
Handle body material
ST - Steel
Handle length l1
80
L2
76
RoHS
Ja
Weight
0.053 kg
b
14.5
d3
20
d4
16
d5
20
d6
9
h
40
h ≈
40
l2 ≈
76
