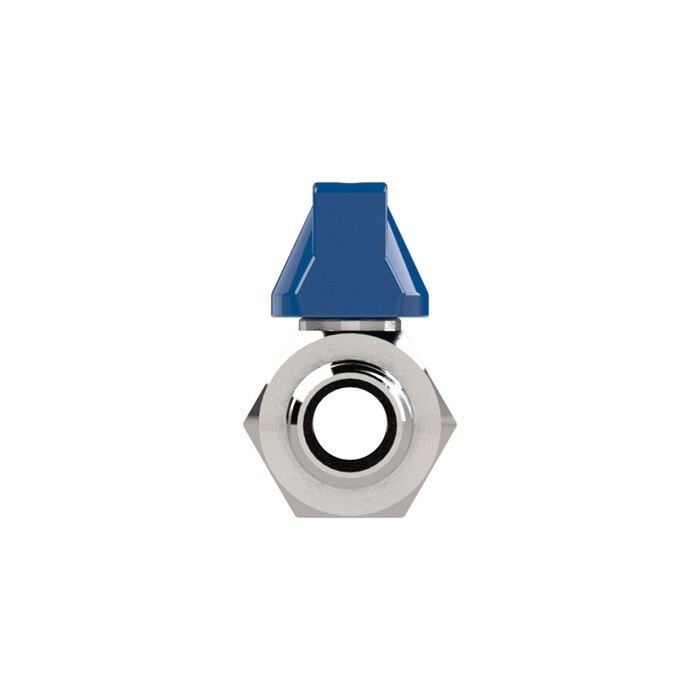

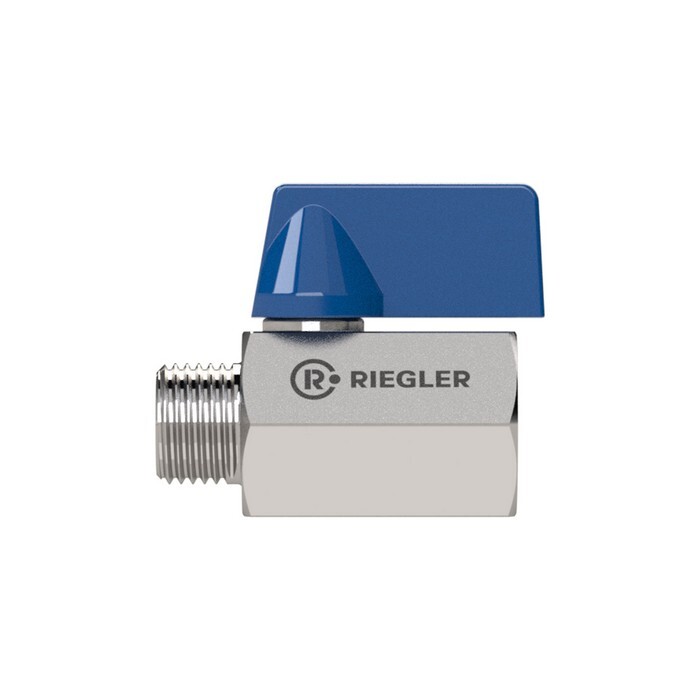

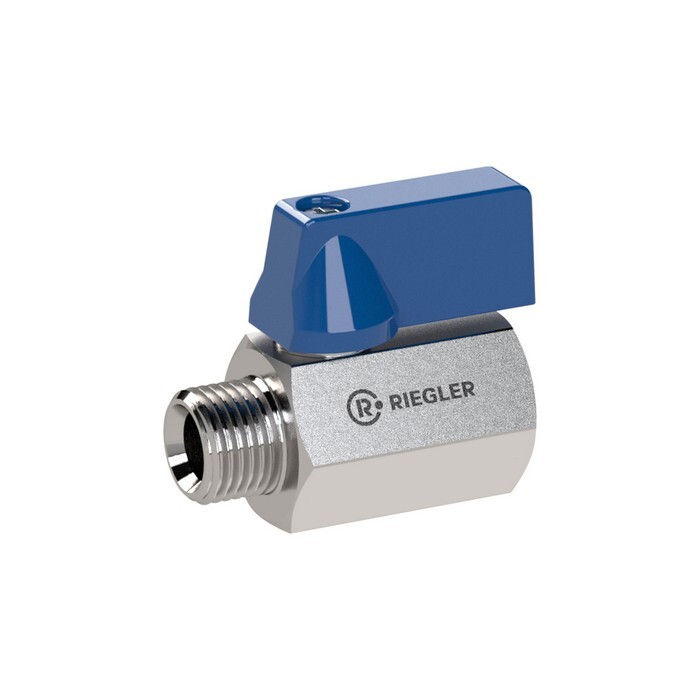

Ball valve stainless steel mini
IG/AG 1/4", DN7, BL 50 mm, PN max 63 bar Aluminium hand leverItem-no.: 1116395Supplier number: 377.01-EScustoms tariff number: 84818081EAN: 4047322263597
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Mini ball valve, Stainless steel 1.4408 CF8M, IT/ET, Operating temperature -20 °C to 120 °C, G 1/4, DN 8, PN max. 63 bar.
Attributes

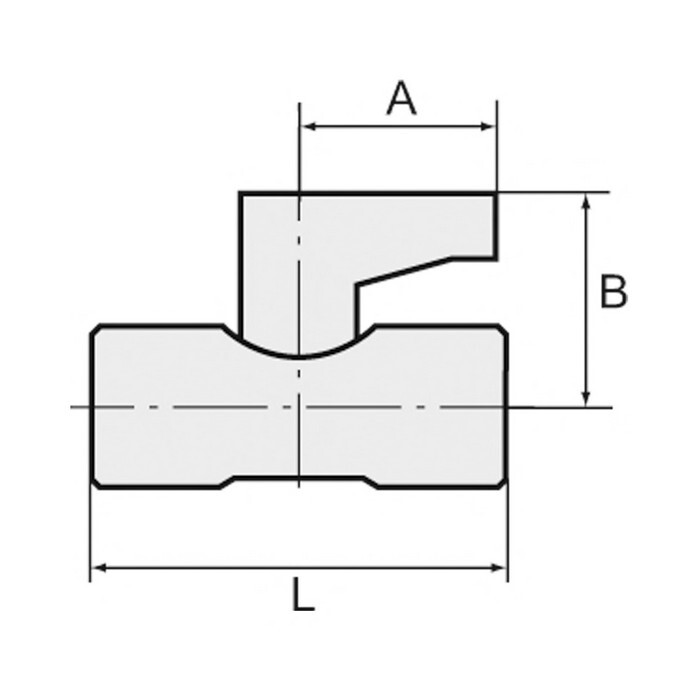

A
22,8 mm
Ball seal
PTFE
DN
8
L
40,0 mm
Material
Stainless steel 1.4408 CF8M
Max. operating pressure
63 bar
Operating temperature max.
120 °C
Operating temperature min.
-20 °C
Riegler article number
103492
Rotary handle
Aluminium
Screw thread
G 1/4
Sealing material
FKM
Spindle
Stainless steel 1.4408 CF8M
b
26,5 mm
