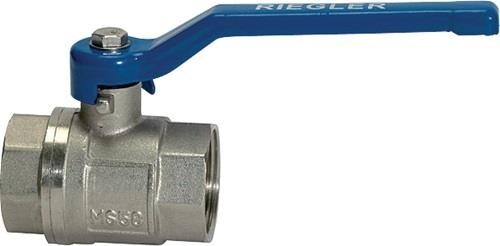

Ball valve Series valve line
IG/IG 1.1/2", DN37, lever aluminium blue Nickel-plated brassItem-no.: 1145810Supplier number: 334.08-Ecustoms tariff number: 84818081EAN: 4047322074285
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Ball valve »valve line« Hand lever blue, Nickel-plated brass, IT/IT, G 1 1/2, DN 40, Operating temp. -20°C to 120°C, PN max 25 bar. Extremely economical standard ball valves made of nickel-plated brass for compressed air, water, non-toxic and non-corrosive gases and liquids.
Attributes
A
138,0 mm
Ball
Nickel-plated brass
Ball seal
PTFE
C Ø
37,0 mm
DN
40
Hand lever
Steel Q235-A (1.0038) with blue PVC coating
Housing
Nickel-plated brass
L
83,0 mm
Lever
Steel Q235 (1.0038) with blue PVC coating
Max. operating pressure
25 bar
Operating pressure
25 bar
Operating temperature max.
120 °C
Operating temperature min.
-20 °C
Screw thread
G 1 1/2 ″
Screw thread mm
47,80 mm
Spindle seal
NBR
Temperature range
-20 to +100 °C
Thread material
Nickel-plated brass
Thread standard
G-thread according to DIN EN ISO 288-1
Version
inside/inside
Working pressure max.
25 bar
b
71,0 mm
