Ball knob
DIN 319-AL-16-M4-C Aluminium, internal threadAL - Aluminium
Item-no.: 1196255Supplier number: DIN 319-AL-16-M4-Ccustoms tariff number: 76169990EAN: 4045525172432
Quantity:
1 PiecePackable
Your price: Price on request
Price and stock visible after login
Description
Ball knobs DIN 319 made of steel and aluminum are not on the official DIN standard sheet.

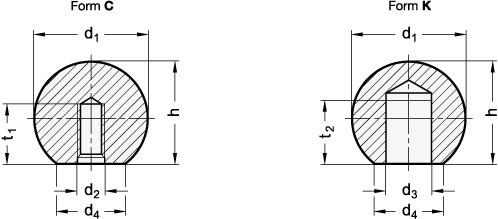

Attributes
Ball diameter d1
16
Form
C - with thread
Material
AL - Aluminium
RoHS
Ja
Screw thread d2
M 4
Weight
0.007 kg
d4
8
d4 ≈
8
h
15
h ≈
15
t1 min.
7
t1min.
7
t2 min.
9
