Ball knob
DIN 319-AL-20-M5-C Aluminium, internal threadAL - Aluminium
Item-no.: 1196257Supplier number: DIN 319-AL-20-M5-Ccustoms tariff number: 76169990EAN: 4045525172463
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Ball knobs DIN 319 made of steel and aluminum are not on the official DIN standard sheet.
Attributes

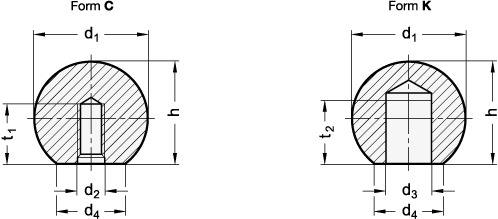

Ball diameter d1
20
Form
C - with thread
Material
AL - Aluminium
RoHS
Ja
Screw thread d2
M 5
Weight
0.011 kg
d4
12
d4 ≈
12
h
18
h ≈
18
t1 min.
9
t1min.
9
t2 min.
11
