Ball knob
DIN 319-AL-40-B16-K Aluminium, boreAL - Aluminium
Item-no.: 1196261Supplier number: DIN 319-AL-40-B16-Kcustoms tariff number: 76169990EAN: 4045525172524
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Ball knobs DIN 319 made of steel and aluminum are not on the official DIN standard sheet.
Attributes

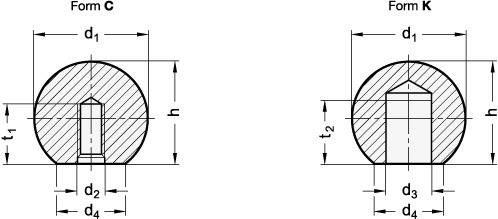

Ball diameter d1
40
Borehole diameter d31
B 16
Form
K - with bore H7
Material
AL - Aluminium
RoHS
Ja
Weight
0.075 kg
d4
22
d4 ≈
22
h
37
h ≈
37
t1 min.
18
t1min.
18
t2 min.
22
