Ganter

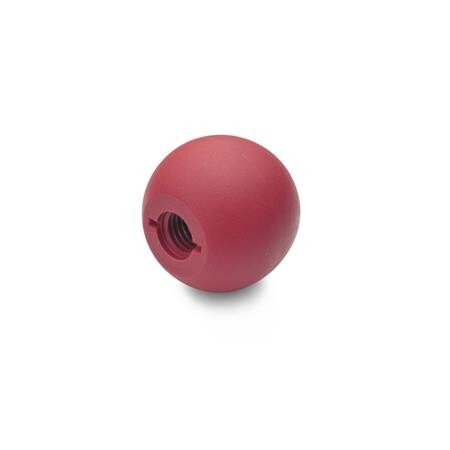

Ball knob

DIN 319-KT-32-M10-C-RT PA red, internal thread
KT - Plastic
Item-no.: 1196285Supplier number: 319-KT-32-M10-C-RTcustoms tariff number: 39269097EAN: 4045525656406

Quantity: ​​ 1 PiecePackable
Item available in 88 variants:
Short-term Sourcing

Description
Ball knobs DIN 319 in sizes 30 and 35, as well as various thread of type C and ball knobs made ​​of technopolymer (KT) are not on the official DIN standard sheet.
Attributes
Ball diameter d1
32
Colour
RT - red
Form
C - with thread, without bushing
Material
KT - Plastic
RoHS
Ja
Screw thread d2 (KT)
M 10
Weight
0.021 kg
d4
18
d4 ≈
18
h
29
h ≈
29
t1 min.
12
t1min.
12
t2 min.
12
