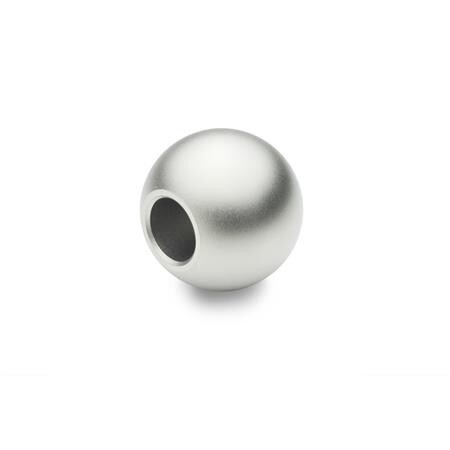

Ball knob with hole
DIN 319-NI-40-B16-K Stainless steel matt blastedNI - Edelstahl
Item-no.: 1196325Supplier number: DIN 319-NI-40-B16-Kcustoms tariff number: 73269098EAN: 4045525614284
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Ball knobs DIN 319 are not on the official DIN standard sheet.

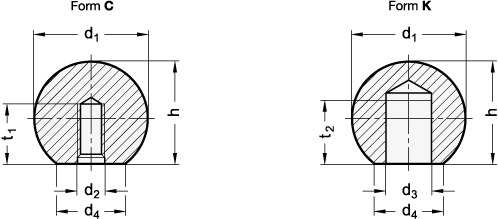

Attributes
Ball diameter d1
40
Borehole diameter d31
B 16
Form
K - with bore H7
Material
NI - Stainless steel
RoHS
Ja
Weight
0.250 kg
d4
22
d4 ≈
22
h
37
h ≈
37
t1 min.
18
t1min.
18
t2 min.
22
