Products
Ganter

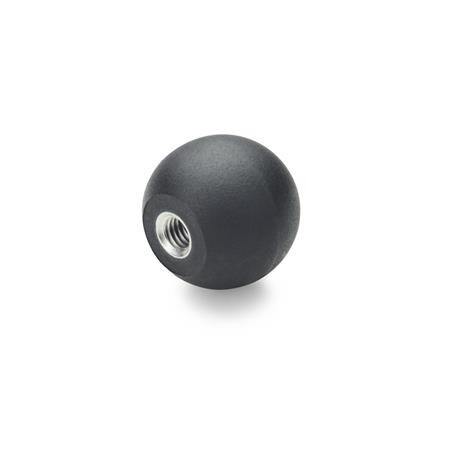

Ball knob with socket

DIN 319-KT-16-M5-E PA black, internal thread
KT - Plastic
Item-no.: 1478500Supplier number: DIN 319-KT-16-M5-Ecustoms tariff number: 39269097EAN: 4045525674752

Quantity: ​​ 1 PiecePackable
Item available in 88 variants:
Short-term Sourcing

Description
Ball knobs DIN 319 in sizes 30 and 35, as well as various thread of type C and ball knobs made ​​of technopolymer (KT) are not on the official DIN standard sheet.
Attributes

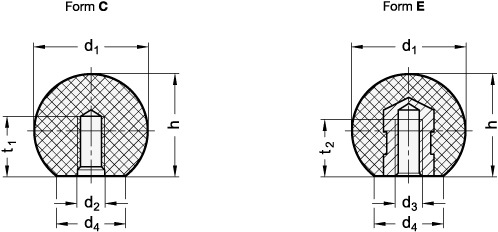

Ball diameter d1
16
Form
E - with threaded bush
Material
KT - Plastic
RoHS
Ja
Screw thread d3 (KT)
M 5
Weight
0.004 kg
d4
8
d4 ≈
8
h
15
h ≈
15
t1 min.
6
t1min.
6
t2 min.
6
