Products
Ganter

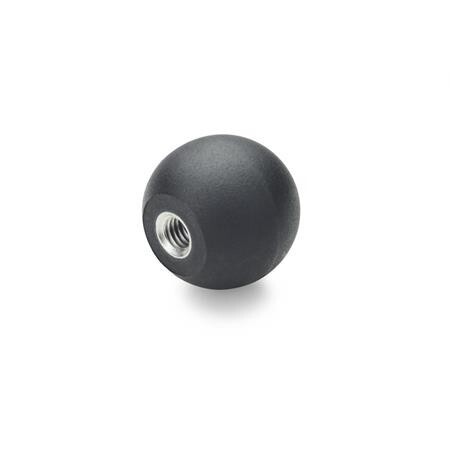

Ball knob with socket

DIN 319-KT-25-M8-E PA black, internal thread
KT - Plastic
Item-no.: 1478504Supplier number: DIN 319-KT-25-M8-Ecustoms tariff number: 39269097EAN: 4045525674790

Quantity: ​​ 1 PiecePackable
Item available in 88 variants:
Short-term Sourcing

Description
Ball knobs DIN 319 in sizes 30 and 35, as well as various thread of type C and ball knobs made ​​of technopolymer (KT) are not on the official DIN standard sheet.
Attributes

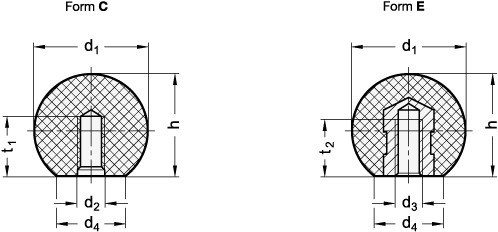

Ball diameter d1
25
Form
E - with threaded bush
Material
KT - Plastic
RoHS
Ja
Screw thread d3 (KT)
M 8
Weight
0.014 kg
d4
15
d4 ≈
15
h
22.5
h ≈
22.5
t1 min.
9
t1min.
9
t2 min.
9
