Ball knob with socket
DIN 319-KT-40-M10-E-RT PA red, internal threadKT - Plastic
Item-no.: 1478508Supplier number: 319-KT-40-M10-E-RTEAN: 4045525721968
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Ball knobs DIN 319 in sizes 30 and 35, as well as various thread of type C and ball knobs made of technopolymer (KT) are not on the official DIN standard sheet.
Attributes
Ball diameter d1
40
Colour
RT - red

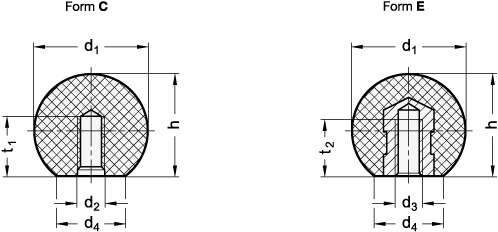

Form
E - with threaded bush
Material
KT - Plastic
RoHS
Ja
Screw thread d3 (KT)
M 10
Weight
0.053 kg
d4
22
d4 ≈
22
h
37
h ≈
37
t1 min.
15
t1min.
15
t2 min.
15
