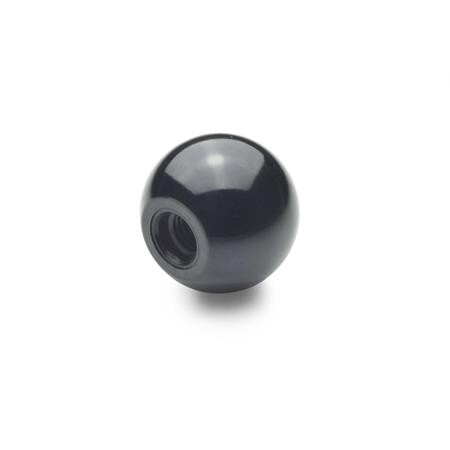

Ball knob without socket
DIN 319-KU-20-M5-C PF black, internal threadKU - Kunststoff
Item-no.: 1075622Supplier number: DIN 319-KU-20-M5-Ccustoms tariff number: 39269097EAN: 4045525172937
PU (PU NW): 25 PiecePU (Packaging): 25 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
Ball knobs DIN 319 in sizes 30 and 35, as well as various thread of type C and ball knobs made of technopolymer (KT) are not on the official DIN standard sheet.
Attributes
Ball diameter d1
20
Form
C - with thread, without bushing
Material
KU - Plastic
RoHS
Ja
Screw thread d2 (KU)
M 5
Weight
0.005 kg
d4
12
d4 ≈
12
h
18
h ≈
18
t1 min.
7.5
t1min.
7.5
t2 min.
7.5
