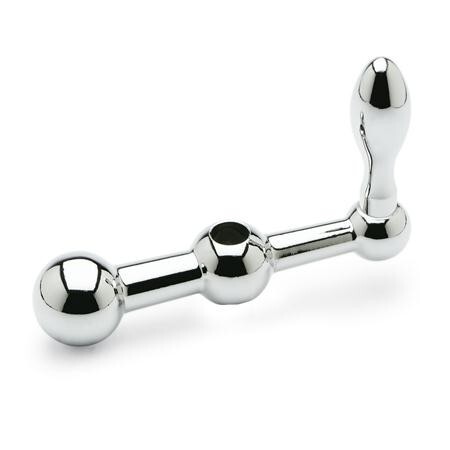

Ball crank
GN 10-104-B12-F Form F2ST - Stahl
Item-no.: 1186826Supplier number: 10-104-B12-Fcustoms tariff number: 84879059EAN: 4045525002913
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Tri-ball handles GN 10 allow fine adjustment. An alternative in modern design are cranked handles GN 510 and control handles GN 112.1.

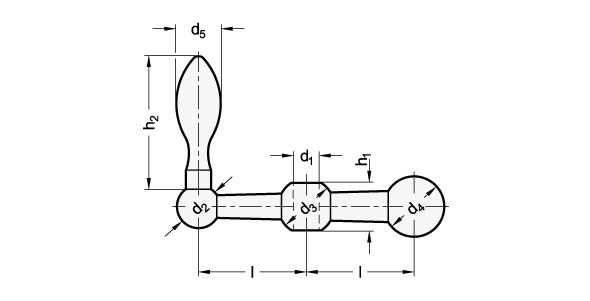

Attributes
Borehole d1
B 12
Borehole filtercolumn
12
Form
F - with fixed handle
Length l
50
Material
ST - Steel
RoHS
Ja
Size no.
104
Weight
0.283 kg
d2
20
d3
26
d4
28
d5
18
h1
21.5
h2
56
h2 ≈
56
