Ball caster with sheet steel housing
GN 509-22-SBL Steel ball and housingItem-no.: 1204081Supplier number: 509-22-SBLcustoms tariff number: 84829900EAN: 4045525458734
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Ball transfer units GN 509 are elements which are used in conveyor technology. They allow effortless displacement or rotation of even heavy loads in any direction. The diameter d2 features a taper in the upper area, beneath the flange, which allows it to be easily and firmly installed.
Attributes
Load rating C in N SBL version
1200
RoHS
Ja
Size
22
Weight
0.128 kg
Werkstoff (Gehäuse / Kugel)
SBL - sheet steel

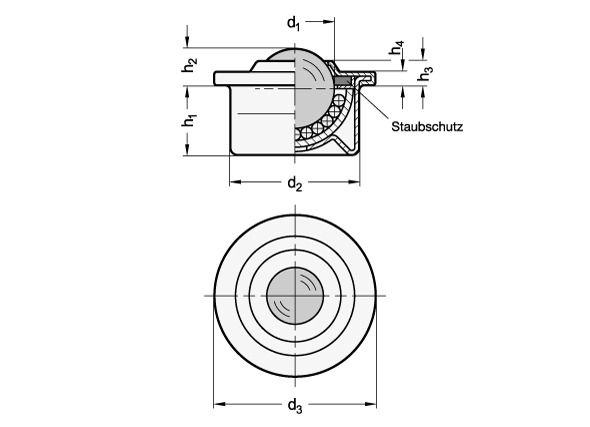

d1 Kugel
22.2
d2
36
d3
45
h1
19.7
h2
9.8
h3
6
h4
2.9
