Ball clamping screw stainless steel
GN 606-M16-80-AN Full ballNI - Stainless steel
Item-no.: 1207749Supplier number: 606-M16-80-ANEAN: 4045525307612
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 104 variants:
Price and stock visible after login
Description

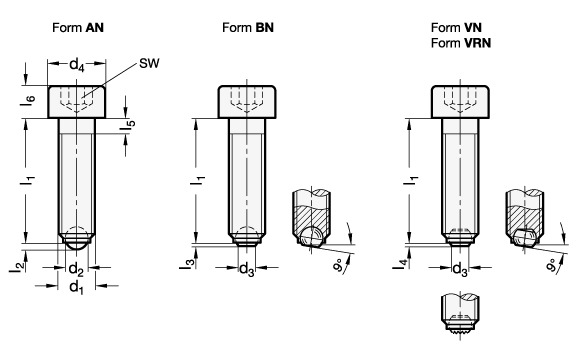

Stainless steel ball point screws GN 606 with full ball (type AN) are used in applications where a ball point contact is required. The flat faced moving ball (type BN) allows a clamping or supporting of non parallel surfaces. The ball of the types VN and VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.
Attributes
Form
AN - full ball
L2
4.3
Material
NI - Stainless steel
RoHS
Ja
SW
14
Screw thread (Form AN/BN) d1
M 16
Static load capacity in N Form AN/Form BN
43800
Statische Belastbarkeit Form AN / Form BN
43800 N
Thread length l1
80
Weight
0.154 kg
d2
12
d4
24
l2 ≈
4.3
l5
6
l6
16
